OCEAN Tower combi - Petrol & WSE

These combined TATSUNO dispensers of the OCEAN Tower series are used for dispensing liquid petroleum products (diesel, petrol, ethanol E85 ...) and  windshield washer fluid (WSE - water & soap & ethanol solution) at public filling stations. They are modern single-sided or double-sided dispensers with one to ten dispensing hoses (max. five dispensing hoses on each side of the dispenser) for delivering any of 2 to 5 products. These dispensers of modern construction are equipped with high-quality Japanese TATSUNO hydraulics and a reliable electronic counter. The WSE dispensing module can be supplemented with a suction pump and a storage tank with a capacity of 250L. All combined dispensers in the OCEAN Tower type series are operated both in the manual mode (i.e. off-line), and in the automatic mode, where the fuel dispenser is linked with the kiosk control system and the data concerning volume, amount and price are transmitted to POS.

Dispenser's documents:

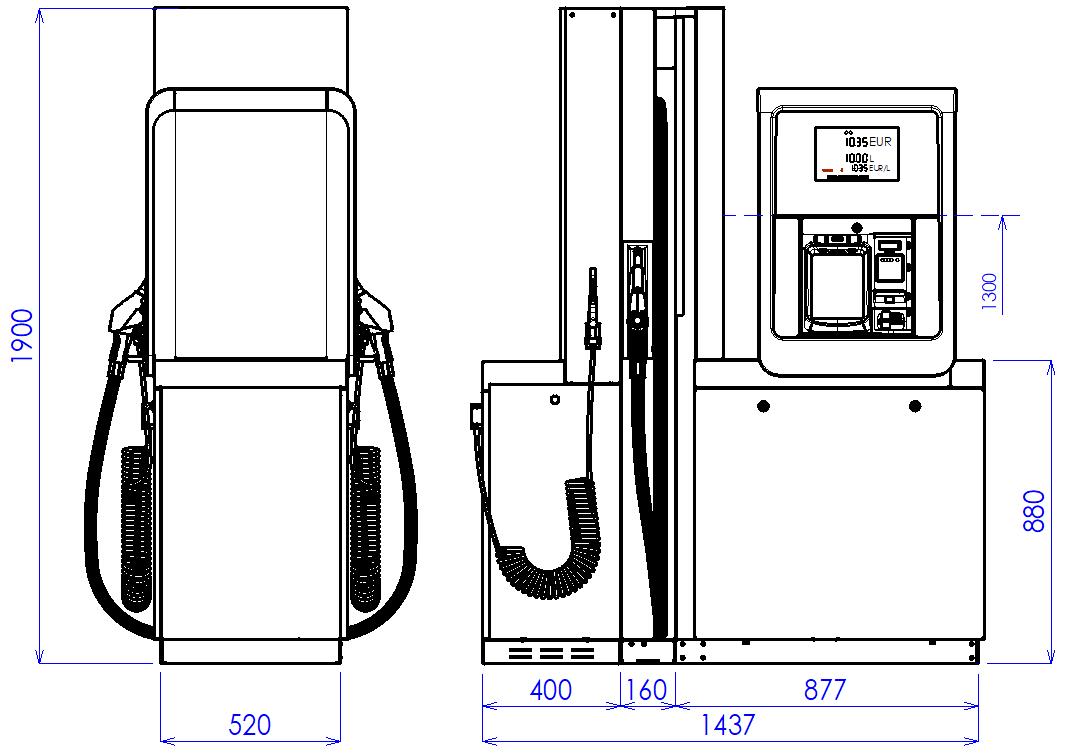

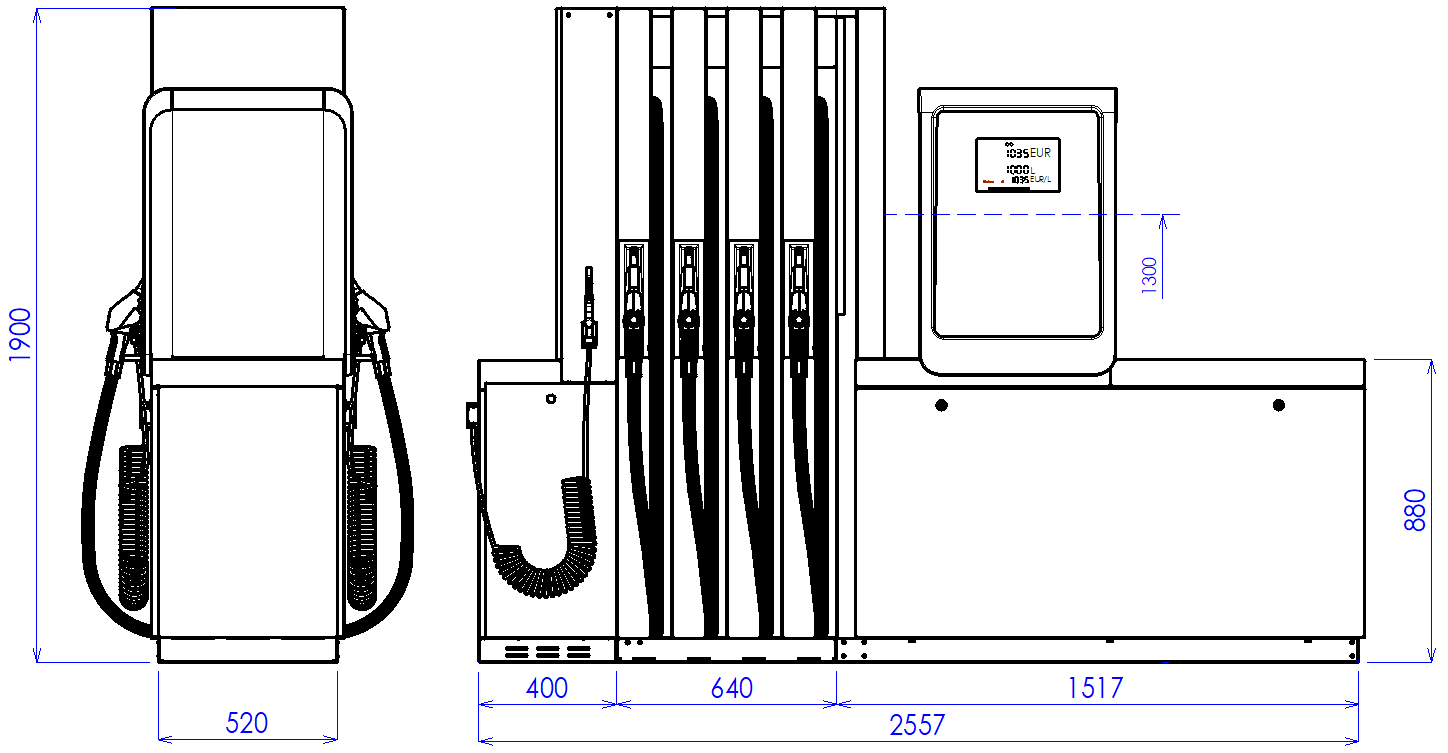

• Overview of dispenser models, dimensions
• Installation and user manuals
• ATEX certificates
• MID certificates
• Vapour recovery system certificates
• EU Declaration of Conformity

Specifications

• New type of long life and high accurate hydraulics TATSUNO MVP-X (Japan)
• Reliable electronic counter PDEX5

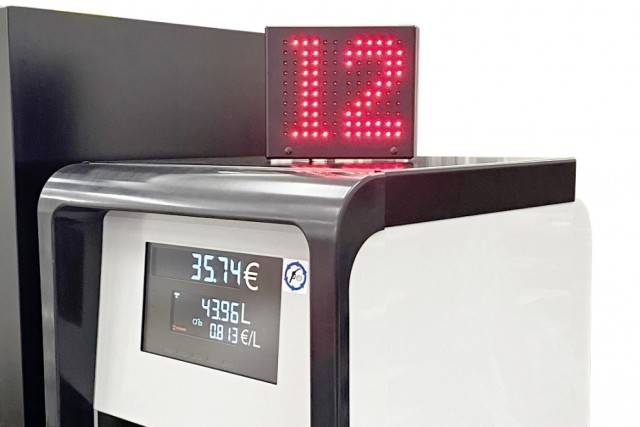

• LCD displays (7-6.5-5), or multimedia displays with electronically controlled LED backlight
• Modern compact design
• Accurate pulse generators TATSUNO (Japan) with encrypted AES 128 data transfer
• Electronic totalizers and electromechanical totalizer for every dispensing nozzle
• Infra-red remote controller for dispenser setup
• Vapour recovery system with electronic signalling and monitoring system (optionally)

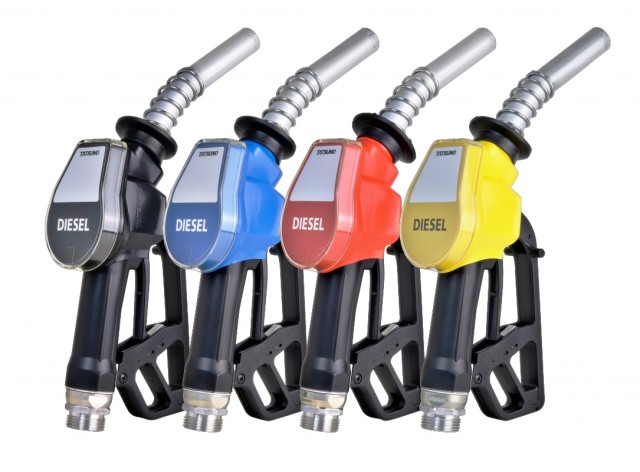

• Dispensing nozzles TATSUNO Ultra (Japan), ZVA-ELAFLEX (Germany)
• Reliable hose retraction system with long active nozzle radius

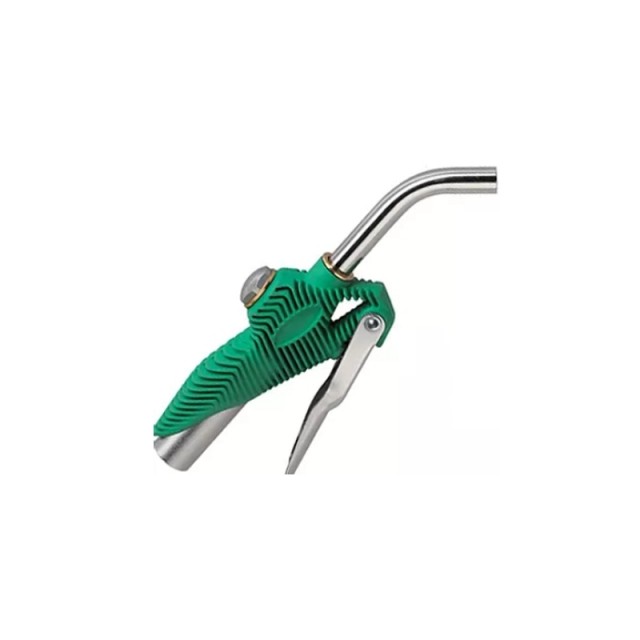

• WSE spiral dispensing hoses with long active nozzle radius (6 m)
• Proportional valves for preselection of dispensed amount/volume
• 4 or 12buttons keypad for amount/volume preselection
• MIN/MAX flow button (optionally) - 130/80 or 80/40 or 40/5 L/min. (motobikes)
• Color design according to the customer's wishes, standard design - see section Basic models
• Possibility to install multimedia module or payment terminal - on customers request
• Temperature volume correction to volume at 15°C  for petrol products (optionally)

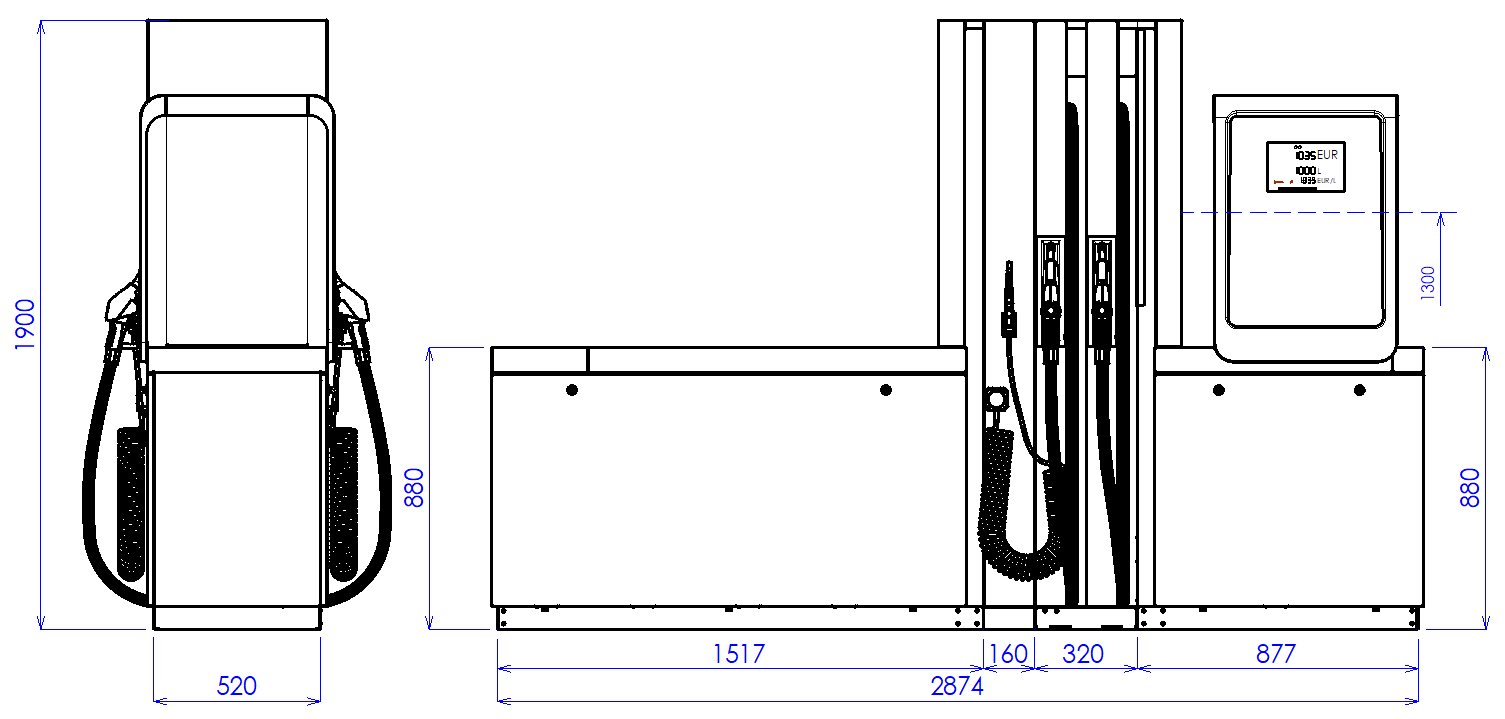

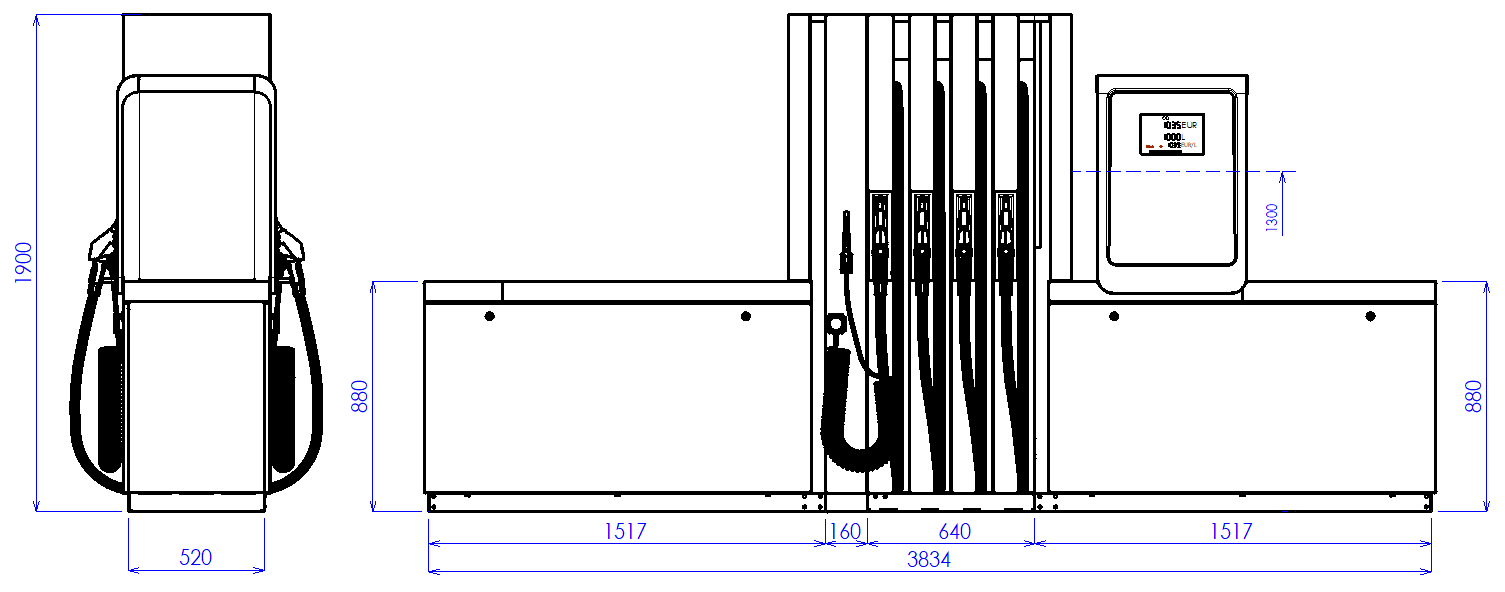

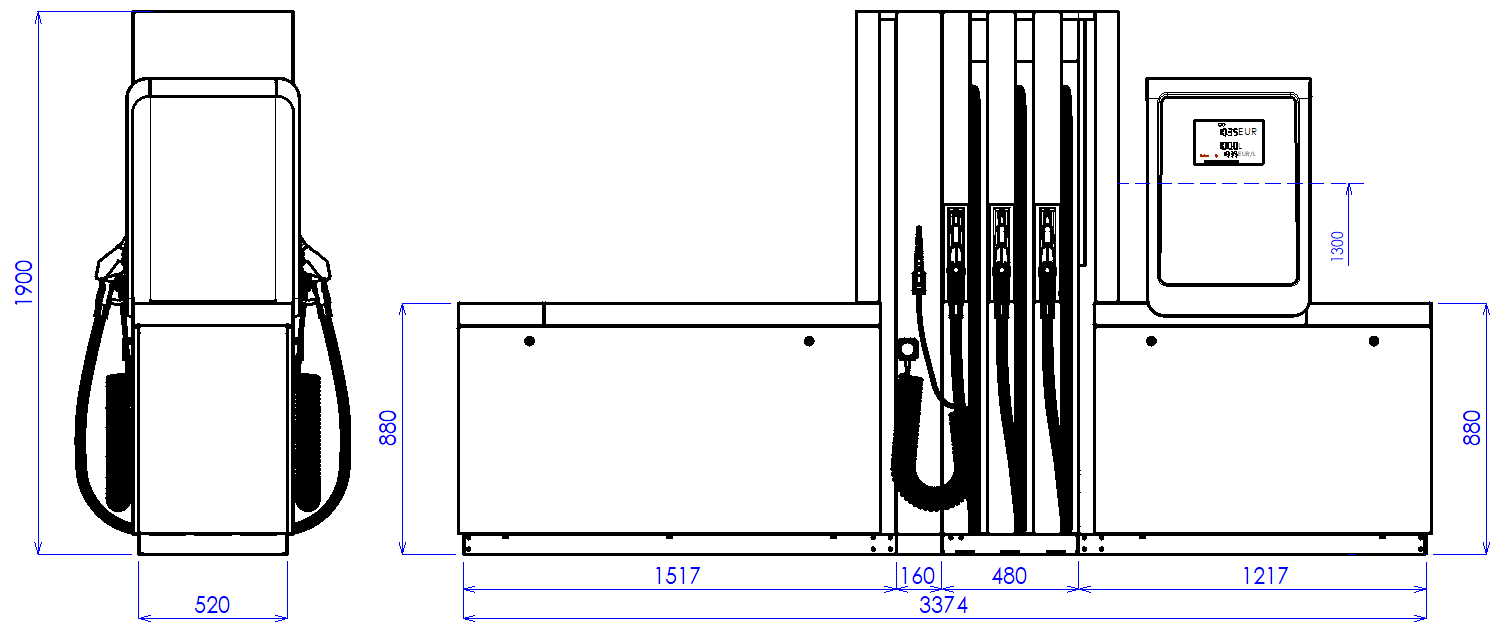

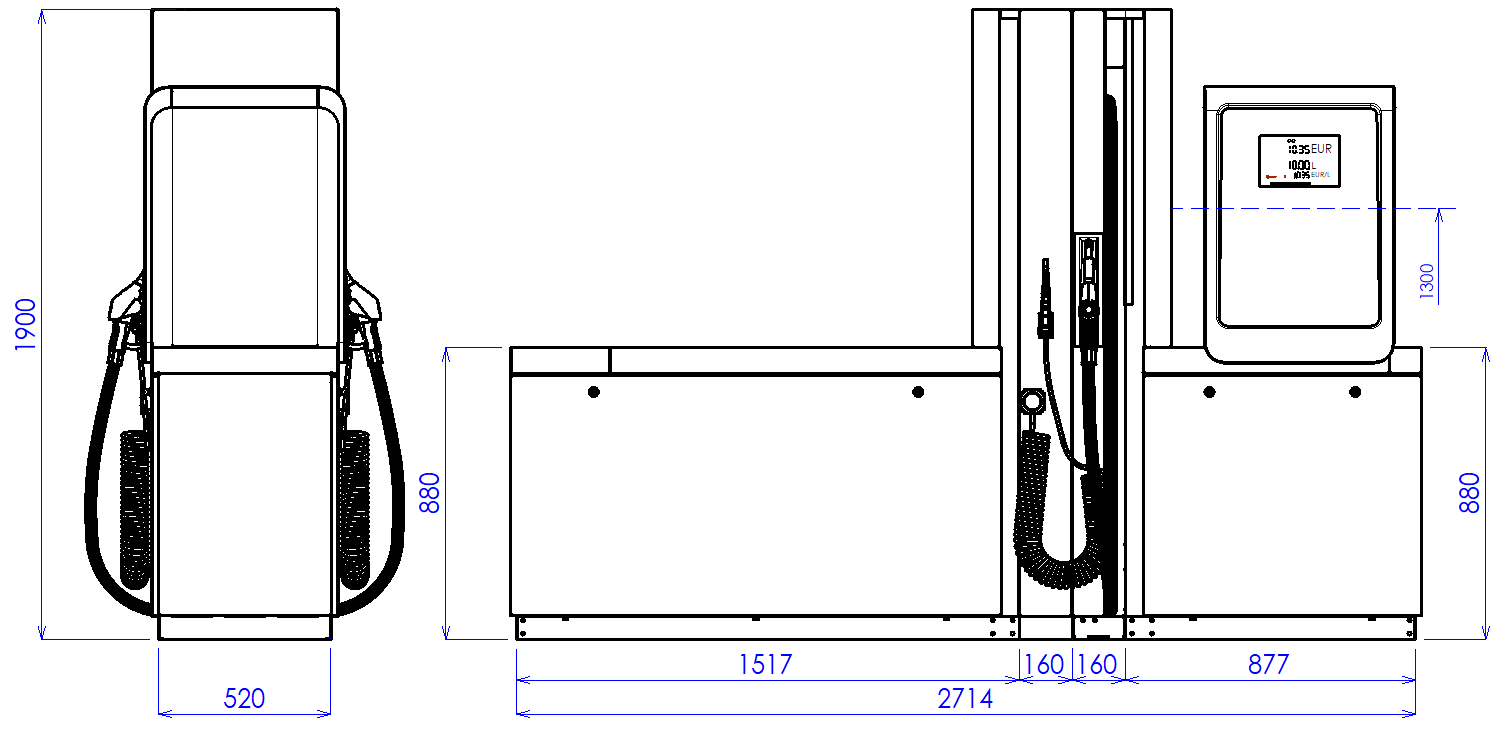

• Variant with suction pump and storage tank 250L, see variants /T250 (optional)
• Diagnostic line (optionally)
