OCEAN Tower AdBlue®
AdBlue® dispensers
1 to 4 hoses
AdBlue® - 32.5% aqueous urea solution, ISO 22241
height 1900mm
hose retraction system
two versions - with and without heating
1 to 4 hoses
AdBlue® - 32.5% aqueous urea solution, ISO 22241
height 1900mm
hose retraction system
two versions - with and without heating
Specifications
The TATSUNO dispensers of the OCEAN Tower AdBlue® series are used for dispensing AdBlue® media at public filling stations for road motor vehicles. They are modern single-sided or double-sided dispensers with one to four dispensing hoses. Dispensers of modern construction are equipped with high-quality Japanese TATSUNO hydraulics and a reliable electronic counter. The AdBlue® dispenser can be supplemented with a suction pump and a storage tank with a capacity of 250L or 500L. In areas where the ambient temperature drops below freezing, it is necessary to equip the dispensers with a thermostat, internal heating of hydraulics, dispensing hoses and nozzles, because at a temperature of about -9°C AdBlue freezes and it is decomposed. All dispensers in the OCEAN Tower AdBlue® type series work both in manual mode (i.e. off-line), and in the automatic mode, where the fuel dispenser is linked with the kiosk control system and the data concerning volume, amount and price are transmitted to cash register.
Dispenser's documents:
Dispenser's documents:
- Overview of dispenser models, dimensions
- Installation and user manuals
- ATEX certificates
- MID certificates
- EU Declaration of Conformity
Specifications
- Long life and high accurate hydraulics TATSUNO (Japan)
- Reliable electronic counter PDEX5
- LCD displays (7-6.5-5), or multimedia displays with electronically controlled LED backlight
- Modern compact design
- Accurate pulse generators TATSUNO (Japan) with encrypted AES 128 data transfer
- Electronic totalizers and electromechanical totalizer for every dispensing nozzle
- Infra-red remote controller for dispenser setup
- Dispensing hoses and nozzles ZVA-ELAFLEX (Germany)
- Reliable hose retraction system with heating and long active nozzle radius (4.3 m)
- Proportional valves for preselection of dispensed amount/volume
- 4 or 12buttons keypad for amount/volume preselection
- Any model colour - on customers request
- Variant with suction pump and storage tank 250L or 500L, see variants /T250 /T500 (optional)
- Possibility to install multimedia module or payment terminal - on customers request (optional)
- ATEX variant with the possibility of installing the dispenser in a defined zone 2 (/Ex)
- Diagnostic line (optional)
Technical Specifications
| Flow rate: | 40 L/min - trucks and buses 10 L/min - personal cars |
| Accuracy: | ± 0.15% (at min. delivery 2 litres) |
| Maximum pressure: | 0.35 MPa |
| Counter power supply: | 230V +10% -15%, 50Hz max.150VA |
| Power supply of the switching elements: | +24VDC |
| Ambient temperature: | 0°C ÷ +50°C -20°C ÷ +50°C (with heating) |
Basic models
.png) |
| STANDARD COLOURS (white = RAL 9016; silver = RAL 9006, black = RAL 9005) |
 |
| OCEAN BMP4012.OWD/AdB 2 nozzles with heating OCEAN BMP4012.OWD/AdB/Ex 2 nozzles with heating and possibility to install into zone 2 (ATEX) |
 |

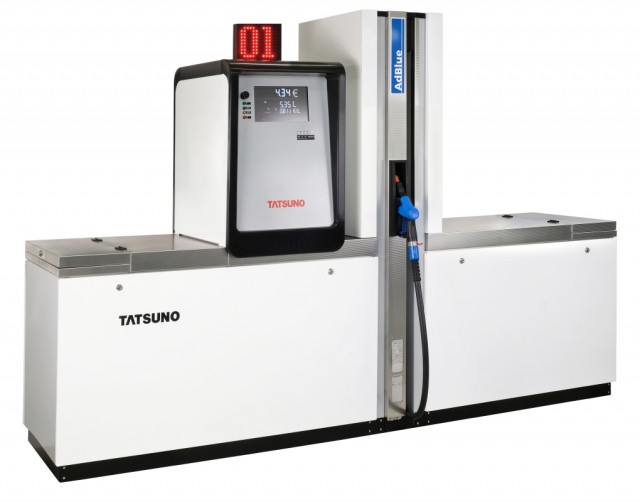

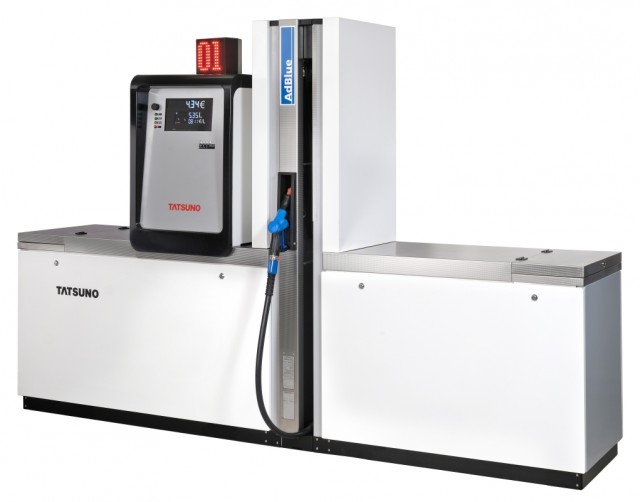

| OCEAN BMP4012.OWD/AdB/T250 2 nozzles with heating + suction pump and storage tank 250L OCEAN BMP4012.OWD/AdB/T250/Ex 2 nozzles with heating + suction pump and storage tank 250L possibility to install into zone 2 (ATEX) |
 |
| OCEAN BMP4012.OWD/AdB/T500 2 nozzles with heating + suction pump and storage tanks with total volume 500L OCEAN BMP4012.OWD/AdB/T500/Ex 2 nozzles with heating + suction pump and storage tanks with total volume 500L possibility to install into zone 2 (ATEX) |
 |
| OCEAN BMP4012.OWD/AdB/NoHeat 2 nozzles without heating OCEAN BMP4012.OWD/AdB/NoHeat/Ex 2 nozzles without heating with possibility to install into zone 2 (ATEX) |
 |
| OCEAN BMP4012.OWD/AdB/T250/NoHeat 2 nozzles without heating + suction pump and storage tank 250L OCEAN BMP4012.OWD/AdB/T250/NoHeat/Ex 2 nozzles without heating + suction pump and storage tank 250L with possibility to install into zone 2 (ATEX) |
 |
| OCEAN BMP4012.OWD/AdB/T500/NoHeat 2 nozzles without heating + suction pump and storage tanks with total volume 500L OCEAN BMP4012.OWD/AdB/T500/NoHeat/Ex 2 nozzles without heating + suction pump and storage tanks with total volume 500L with possibility to install into zone 2 (ATEX) |
 |
| OCEAN BMP4014.OWD/AdB 4 nozzles with heating OCEAN BMP4014.OWD/AdB/Ex 4 nozzles with heating with possibility to install into zone 2 (ATEX) |
 |
| OCEAN BMP4014.OWD/AdB/NoHeat 4 nozzles without heating OCEAN BMP4014.OWD/AdB/NoHeat/Ex 4 nozzles without heating with possibility to install into zone 2 (ATEX) |
