OCEAN Tower combi - Petrol & LPG & CNG

These combined TATSUNO dispensers of the OCEAN Tower series are used for dispensing liquid petroleum products (diesel, petrol, ethanol E85 ...), liquefied propane butane (LPG) and compressed natural gas (CNG) at public filling stations. They are modern single-sided or double-sided dispensers with one to twelve dispensing hoses (max. six dispensing hoses on each side of the dispenser) for delivering any of 2 to 6 products. These dispensers of modern construction are equipped with high-quality Japanese TATSUNO hydraulics and a reliable electronic counter. All combined dispensers in the OCEAN Tower type series are operated both in the manual mode (i.e. off-line), and in the automatic mode, where the fuel dispenser is linked with the kiosk control system and the data concerning volume, amount and price are transmitted to POS.

Dispenser's documents:

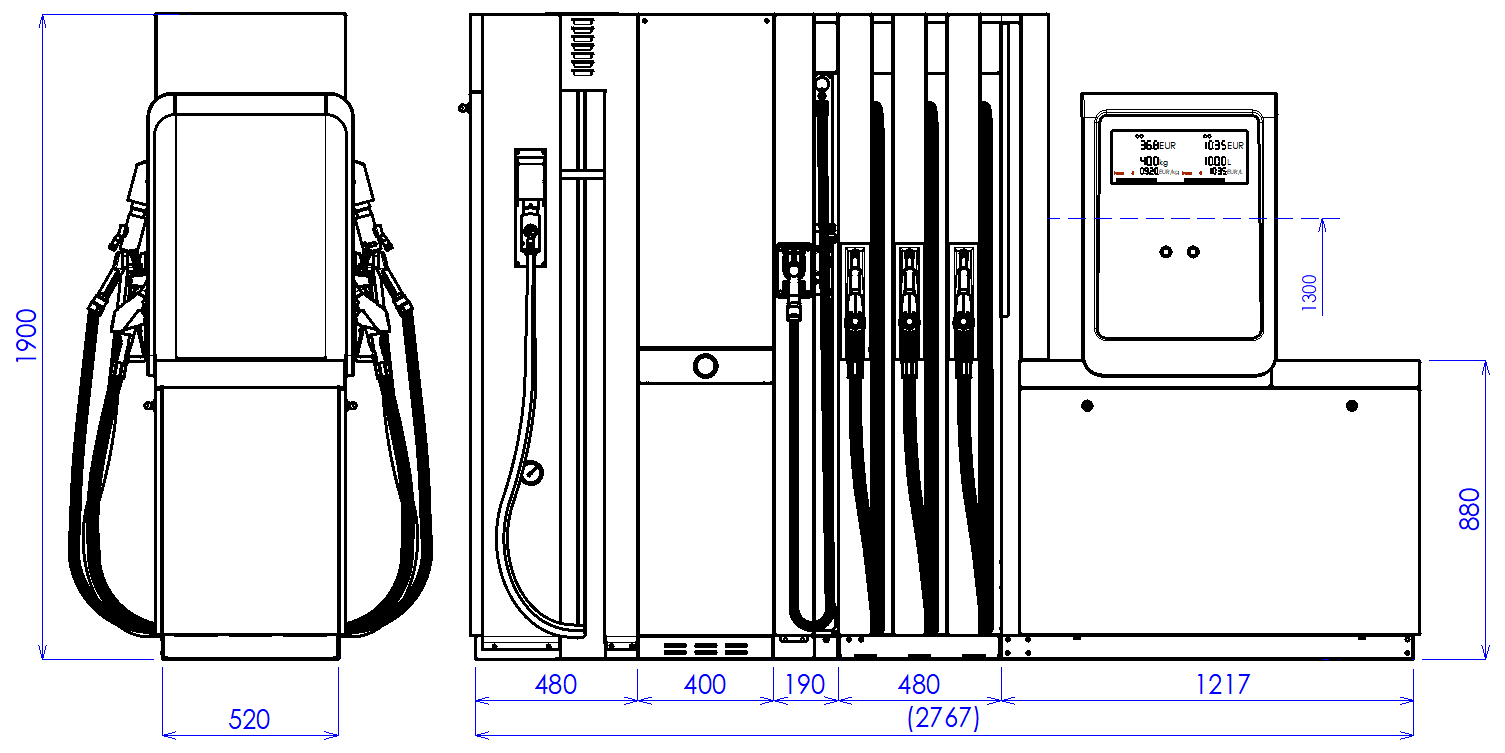

• Overview of dispenser models, dimensions
• Installation and user manuals
• ATEX certificates
• MID and OIML 139 certificates
• Vapour recovery system certificates
• EU Declaration of Conformity

Specifications

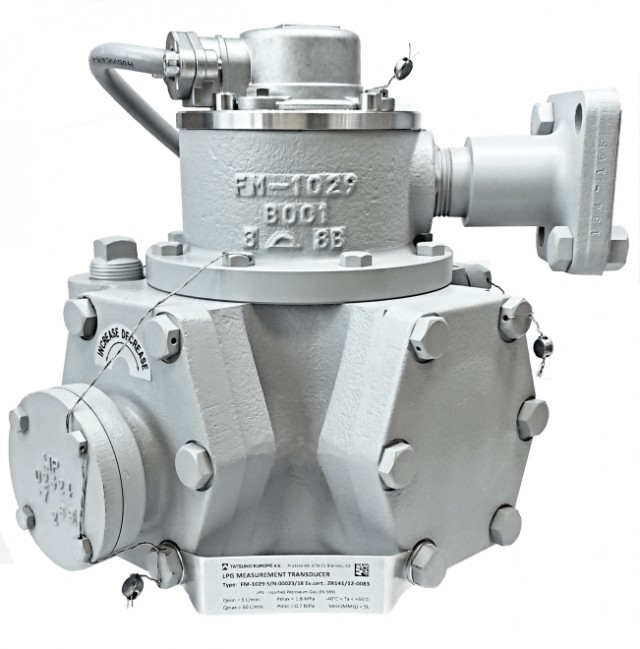

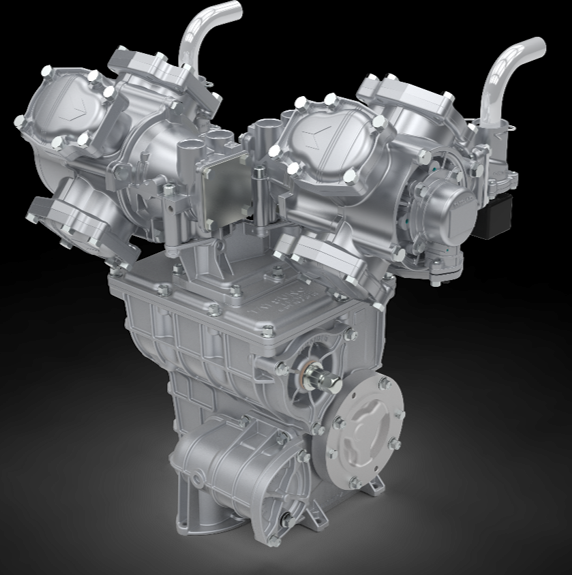

• New type of long life and high accurate hydraulics TATSUNO (Japan)
• Reliable electronic counter PDEX5 (for petrol&LPG) and TBELTM (for CNG)

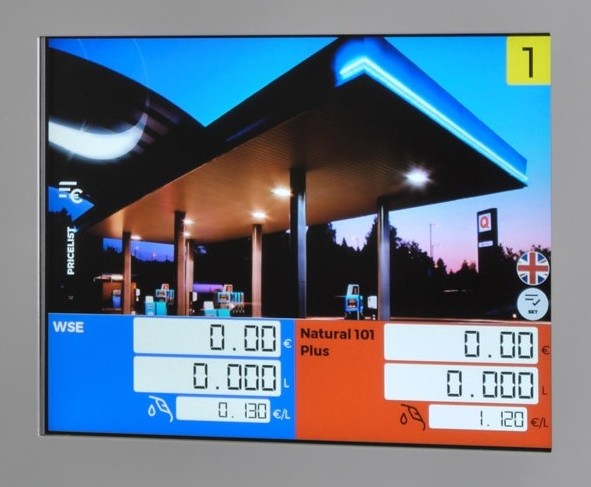

• LCD displays (7-6.5-5), or multimedia displays with electronically controlled LED backlight
• Modern compact design
• Accurate pulse generators TATSUNO (Japan) with encrypted AES 128 data transfer
• Electronic totalizers and electromechanical totalizer for every dispensing nozzle
• Infra-red remote controller for dispenser setup
• Vapour recovery system with electronic signalling and monitoring system (optionally)

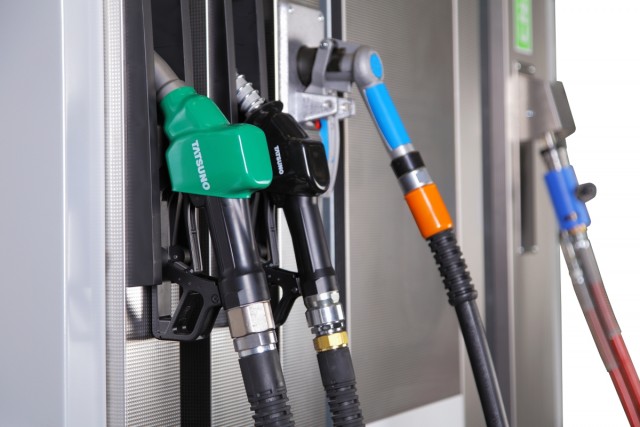

• Dispensing nozzles TATSUNO Ultra (Japan), ZVA-ELAFLEX (Germany) and LPG Group (Italy)
• Reliable hose retraction system with long active nozzle radius
• Free hanging CNG hoses
• Proportional valves for preselection of dispensed amount/volume
• 4 or 12buttons keypad for amount/volume preselection
• MIN/MAX flow button (optionally) - 130/80 or 80/40 or 40/5 L/min. (motobikes)
• Color design according to the customer's wishes, standard design - see section Basic models
• Possibility to install multimedia module or payment terminal - on customers request
• Temperature volume correction to volume at 15°C  for petrol & LPG products (optional)
• Temperature compensation of the CNG filling to max. quantity at 20,0 MPa (200 bar) and 15°C  (optional)
• Intelligent switching of the pressure sections (CNG)
• Signal bacons + Collective Error signal (optional)
• Diagnostic line (optionally)
