OCEAN Tower combi - Petrol & AdBlue® & WSE

These combined TATSUNO dispensers of the OCEAN Tower series are used for dispensing liquid petroleum products (diesel, petrol, ethanol E85 ...) AdBlue®  (32.5% aqueous urea solution acc. ISO 22241) and windshield washer liquid (WSE) at public filling stations. They are modern single-sided or double-sided dispensers with one to fourteen dispensing hoses (max. seven dispensing hoses on each side of the dispenser) for delivering any of 2 to 5 products. These dispensers of modern construction are equipped with high-quality Japanese TATSUNO hydraulics and a reliable electronic counter. In areas where the ambient temperature drops below freezing, it is necessary to equip the AdBlue® module  with a thermostat, internal heating of hydraulics, dispensing hoses and nozzles, because at a temperature of about -9°C AdBlue® freezes and it is decomposed. All combined dispensers in the OCEAN Tower type series are operated both in the manual mode (i.e. off-line), and in the automatic mode, where the fuel dispenser is linked with the kiosk control system and the data concerning volume, amount and price are transmitted to POS.

Dispenser's documents:

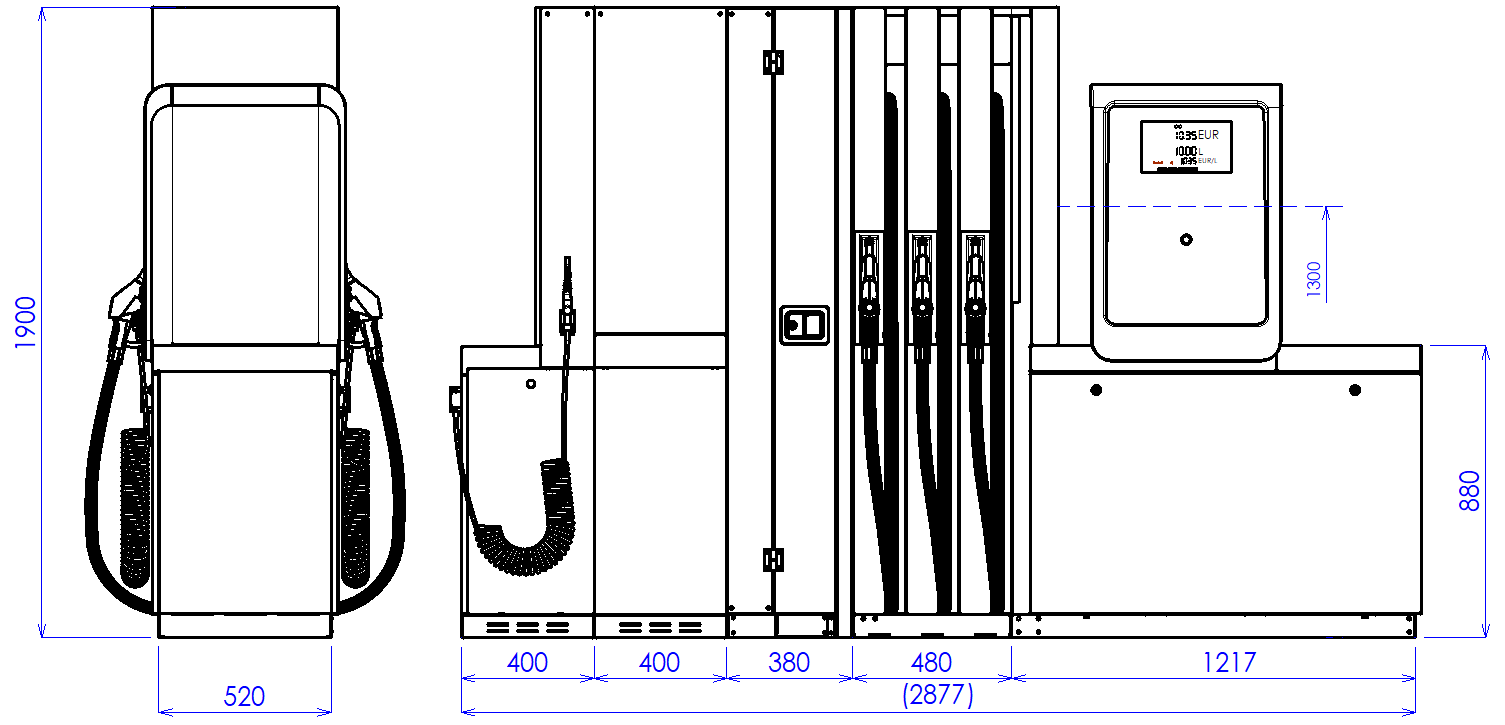

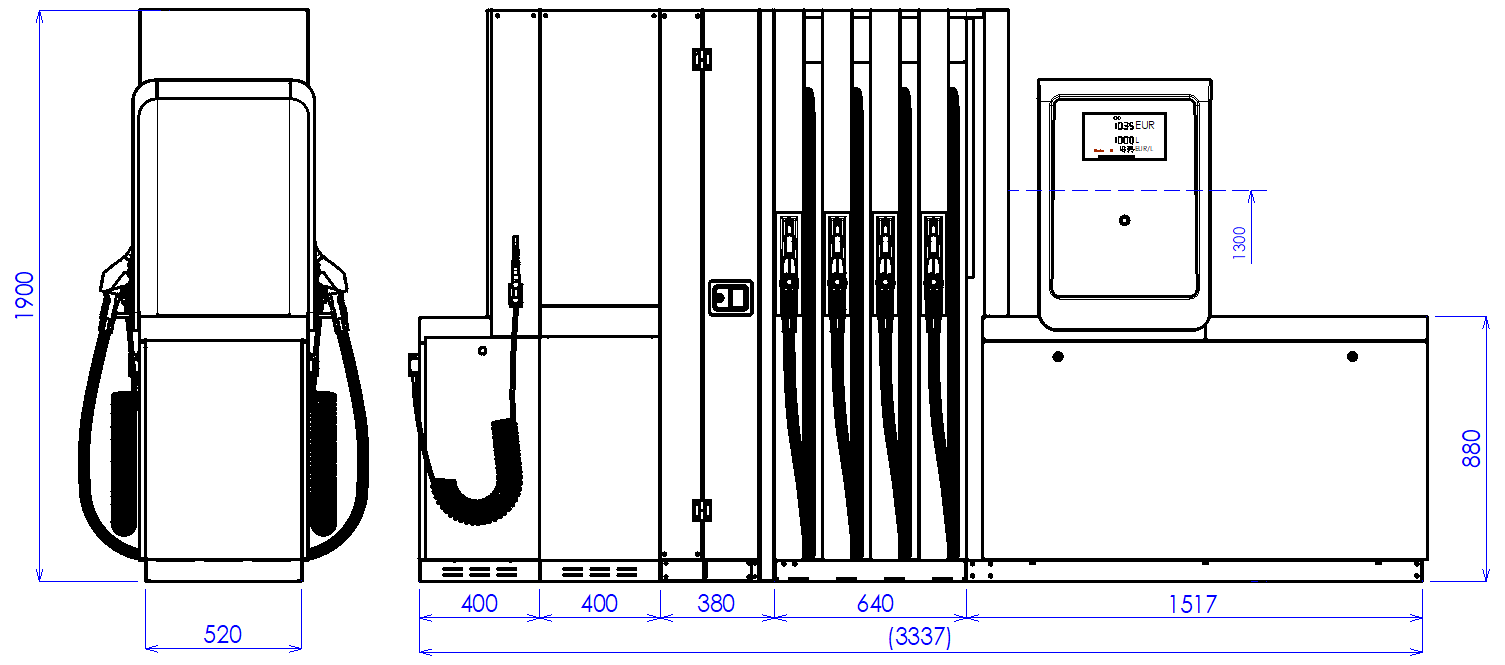

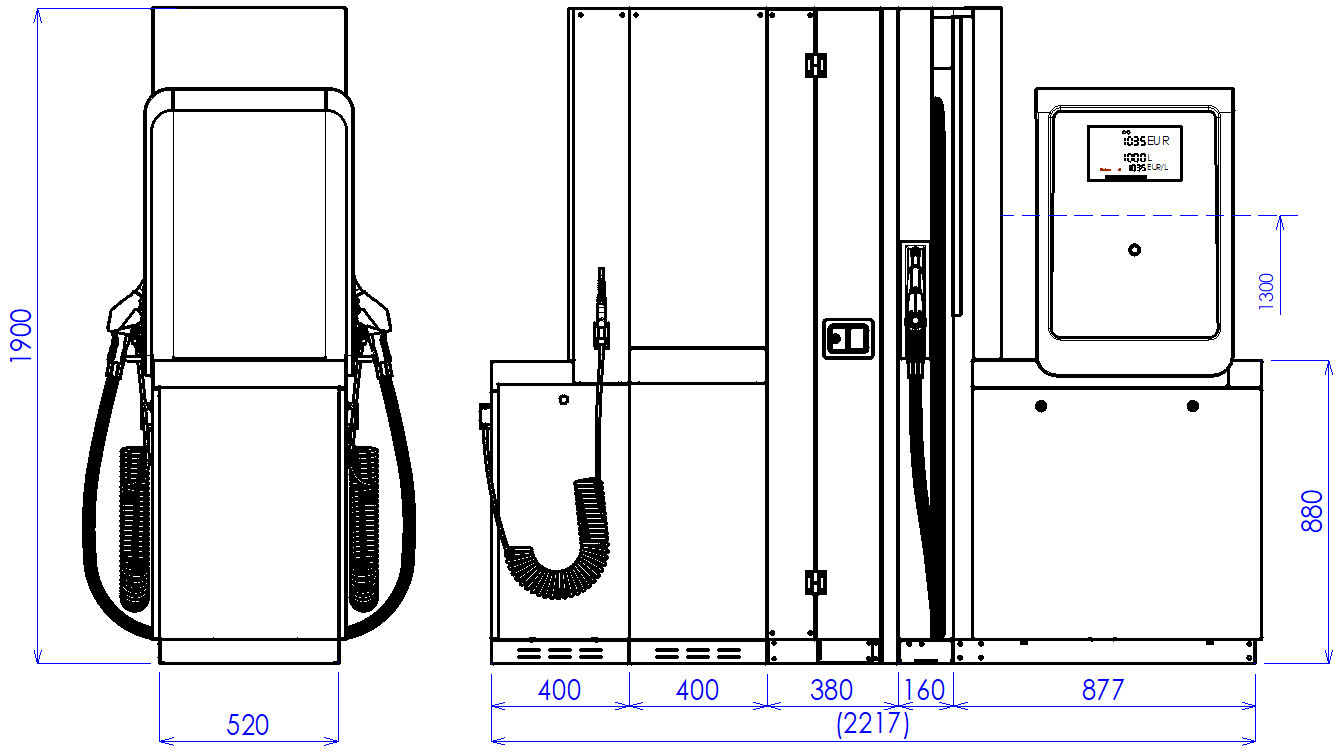

• Overview of dispenser models, dimensions
• Installation and user manuals
• ATEX certificates
• MID certificates
• Vapour recovery system certificates
• EU Declaration of Conformity

Specifications

• New type of long life and high accurate hydraulics TATSUNO MVP-X (Japan)
• Reliable electronic counter PDEX5

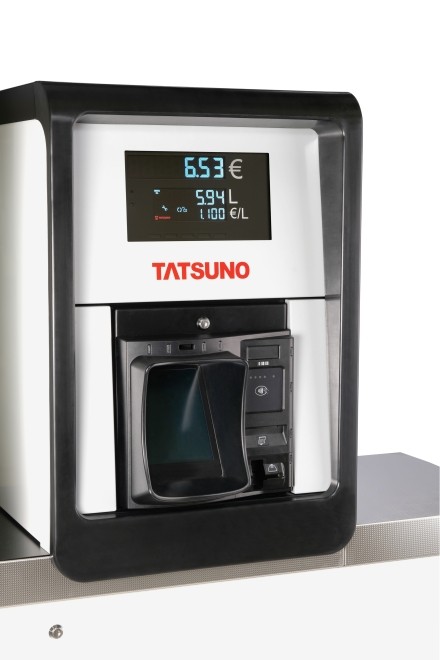

• LCD displays (7-6.5-5), or multimedia displays with electronically controlled LED backlight
• Modern compact design
• Accurate pulse generators TATSUNO (Japan) with encrypted AES 128 data transfer
• Electronic totalizers and electromechanical totalizer for every dispensing nozzle
• Infra-red remote controller for dispenser setup
• Vapour recovery system with electronic signalling and monitoring system (optionally)
• Dispensing nozzles TATSUNO Ultra (Japan), ZVA-ELAFLEX (Germany)
• Reliable hose retraction system with long active nozzle radius
• WSE spiral free hanging hoses with active nozzle radius 6m
• Proportional valves for preselection of dispensed amount/volume

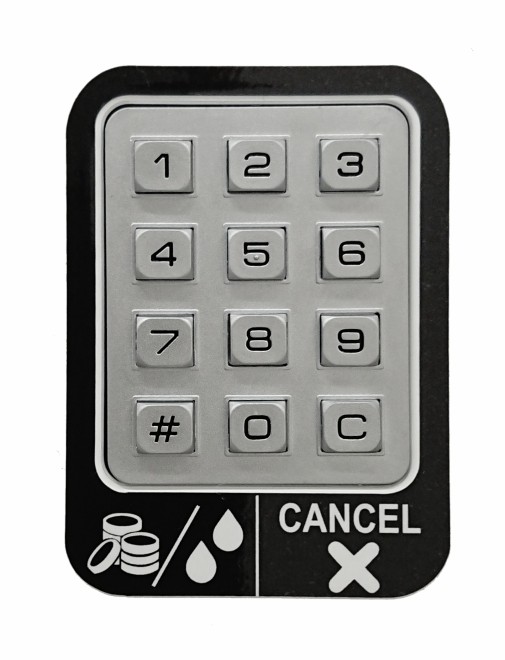

• 4 or 12buttons keypad for amount/volume preselection
• MIN/MAX flow button (optionally) - 130/80 or 80/40 or 40/5 L/min. (motobikes)

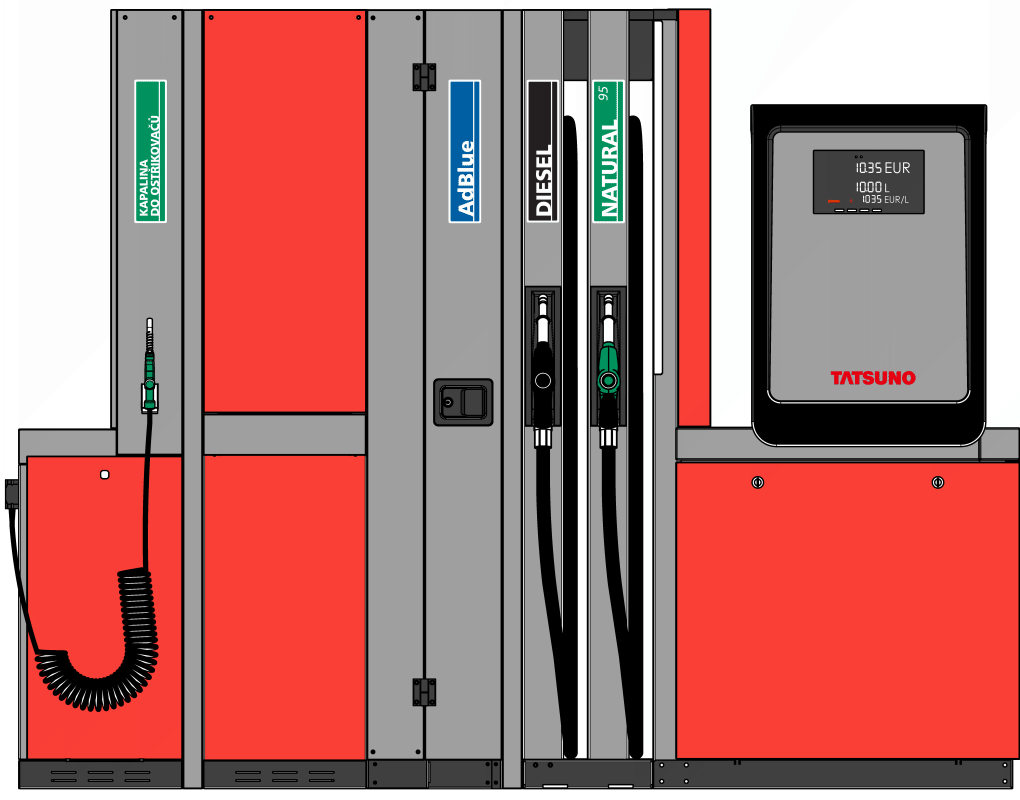

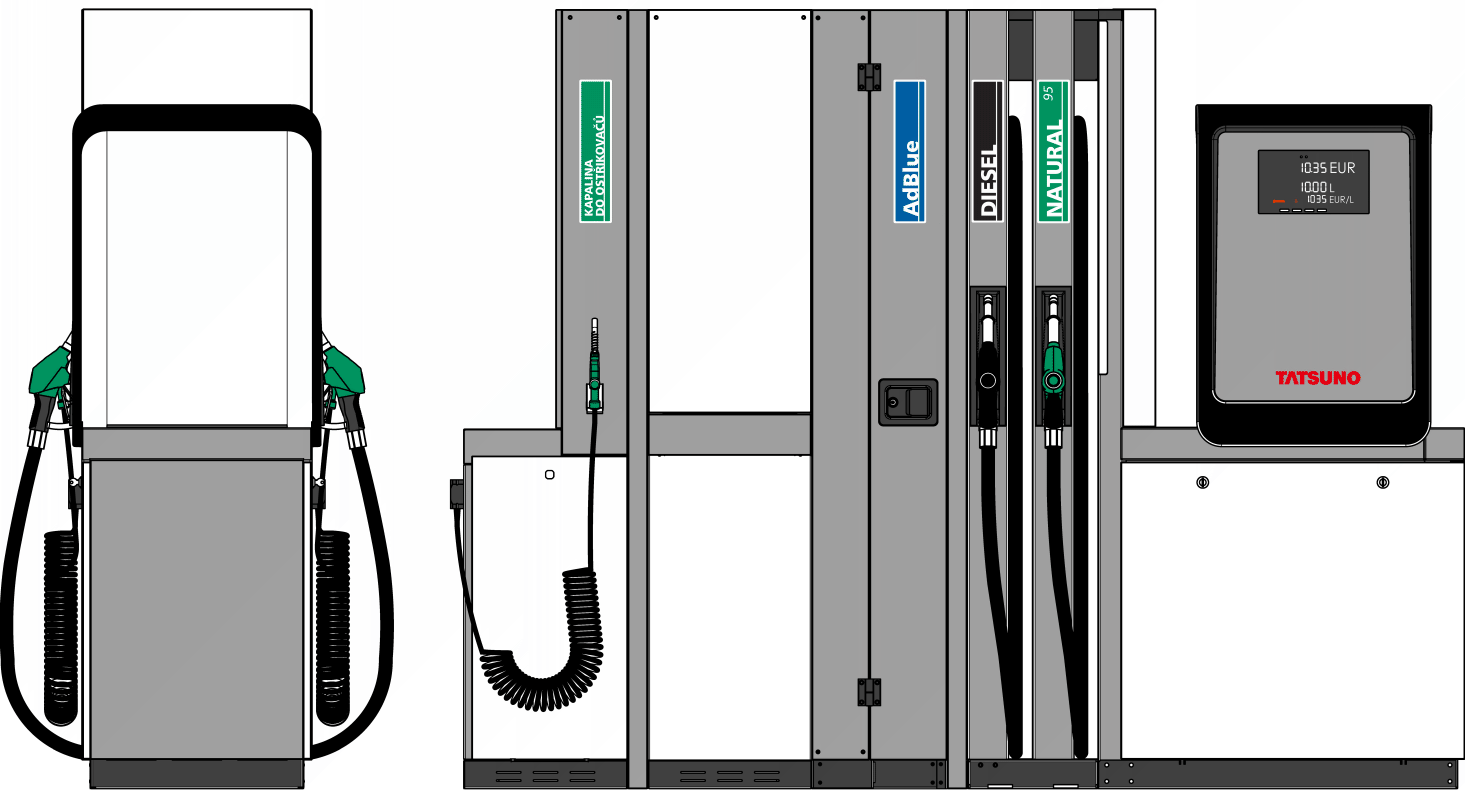

• Color design according to the customer's wishes, standard design - see section Basic models
• Possibility to install multimedia module or payment terminal - on customers request
• Temperature volume correction to volume at 15°C  for petrol products (optionally)
• Diagnostic line (optionally)

Technical Specifications



Flow rate               - petrol:	standard 40 L/min high 80 L/min ultra high 130 L/min to 150 L/min
- AdBlue®: - WSE	40 L/min - trucks and buses  10 L/min - personal cars 10 L/min
Accuracy of dispensing:	± 0.15% (at min. delivery 2 litres)
Maximum pressure              - petrol: - AdBlue® & WSE:	0.25 MPa 0.35 MPa
Electric motors:	thrее-phase, 3x400V/50Hz, 0.75kW, 1395 rpm
Counter power supply:	230V +10% -15%, 50Hz max.300VA
Power supply of the switching elements:	+24VDC
Operating temperature:	0°C ÷ +50°C -20°C ÷ +50°C (with AdBlue® heating)
