OCEAN Tower combi - Petrol & AdBlue® & CNG

These combined TATSUNO dispensers of the OCEAN Tower series are used for dispensing liquid petroleum products (diesel, petrol, ethanol E85 ...), AdBlue®  (32.5% aqueous urea solution, ISO 22241) and compressed natural gas (CNG) at public filling stations. They are modern single-sided or double-sided dispensers with three to sixteen dispensing hoses (max. eight dispensing hoses on each side of the dispenser) for delivering any of 3 to 6 products. These dispensers of modern construction are equipped with high-quality Japanese TATSUNO hydraulics and a reliable electronic counter. In areas where the ambient temperature drops below freezing, it is necessary to equip the AdBlue® module of dispenser with a thermostat, internal heating of hydraulics, dispensing hoses and nozzles, because at a temperature of about -9°C AdBlue® freezes and it is decomposed.All combined dispensers in the OCEAN Tower type series are operated both in the manual mode (i.e. off-line), and in the automatic mode, where the fuel dispenser is linked with the kiosk control system and the data concerning volume, amount and price are transmitted to POS.

Dispenser's documents:

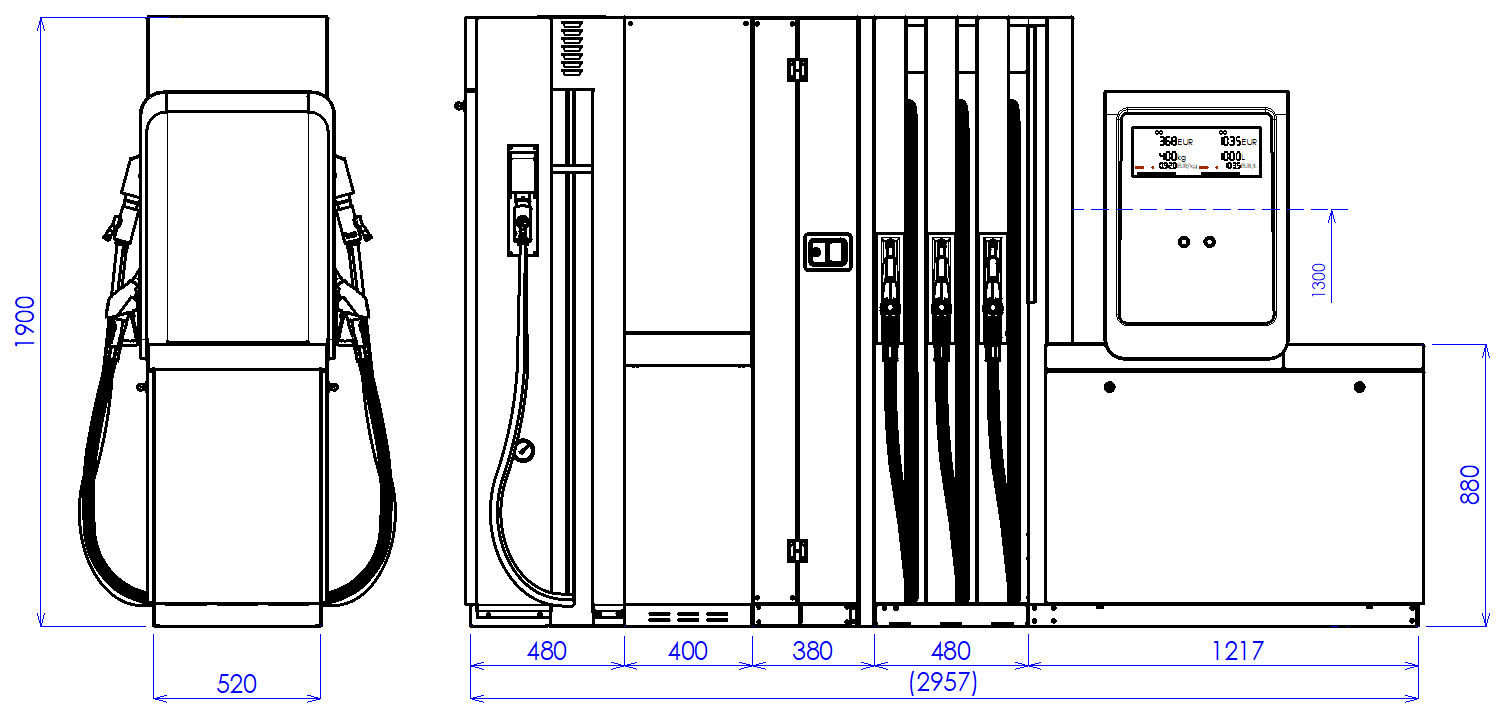

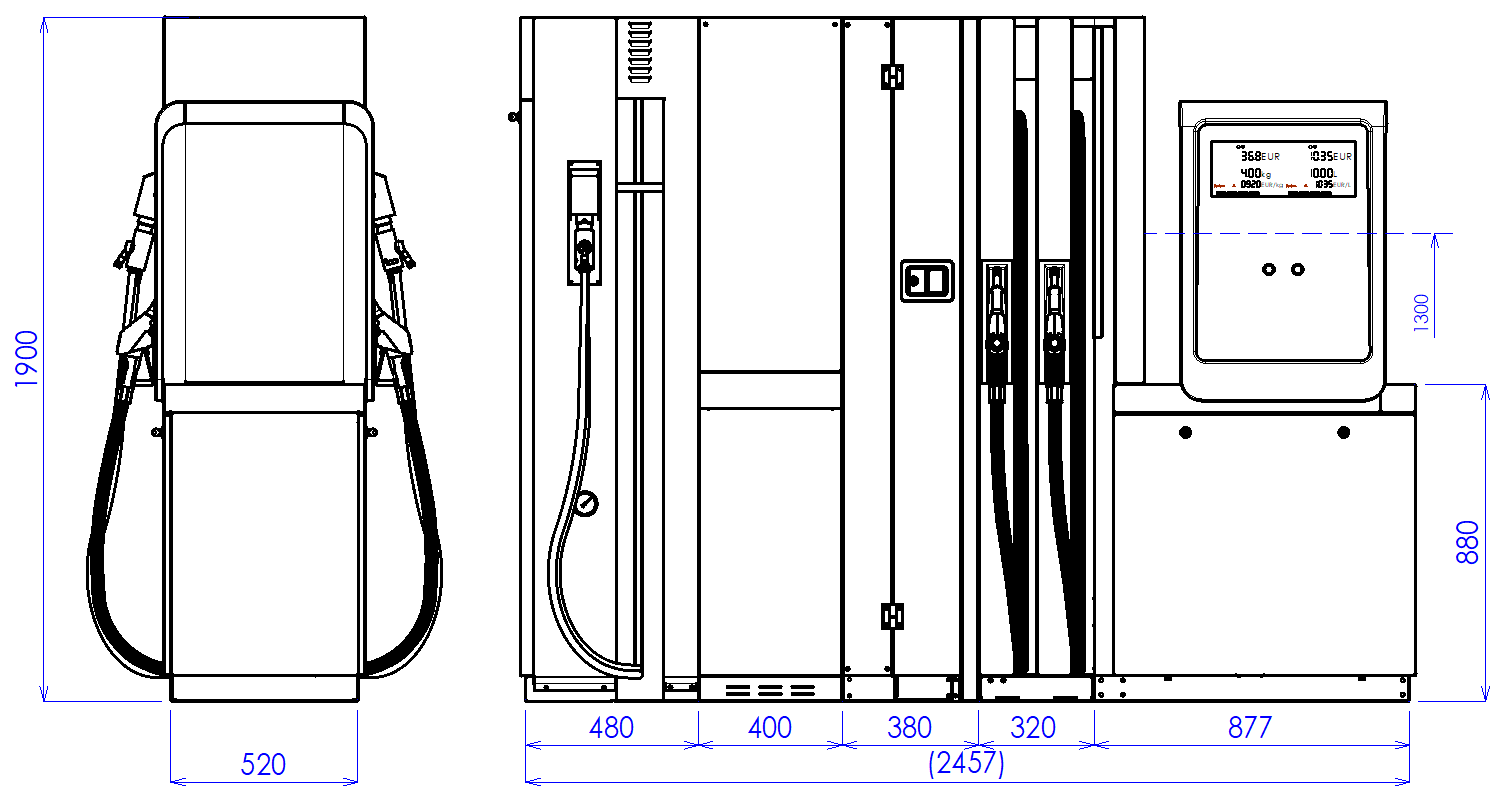

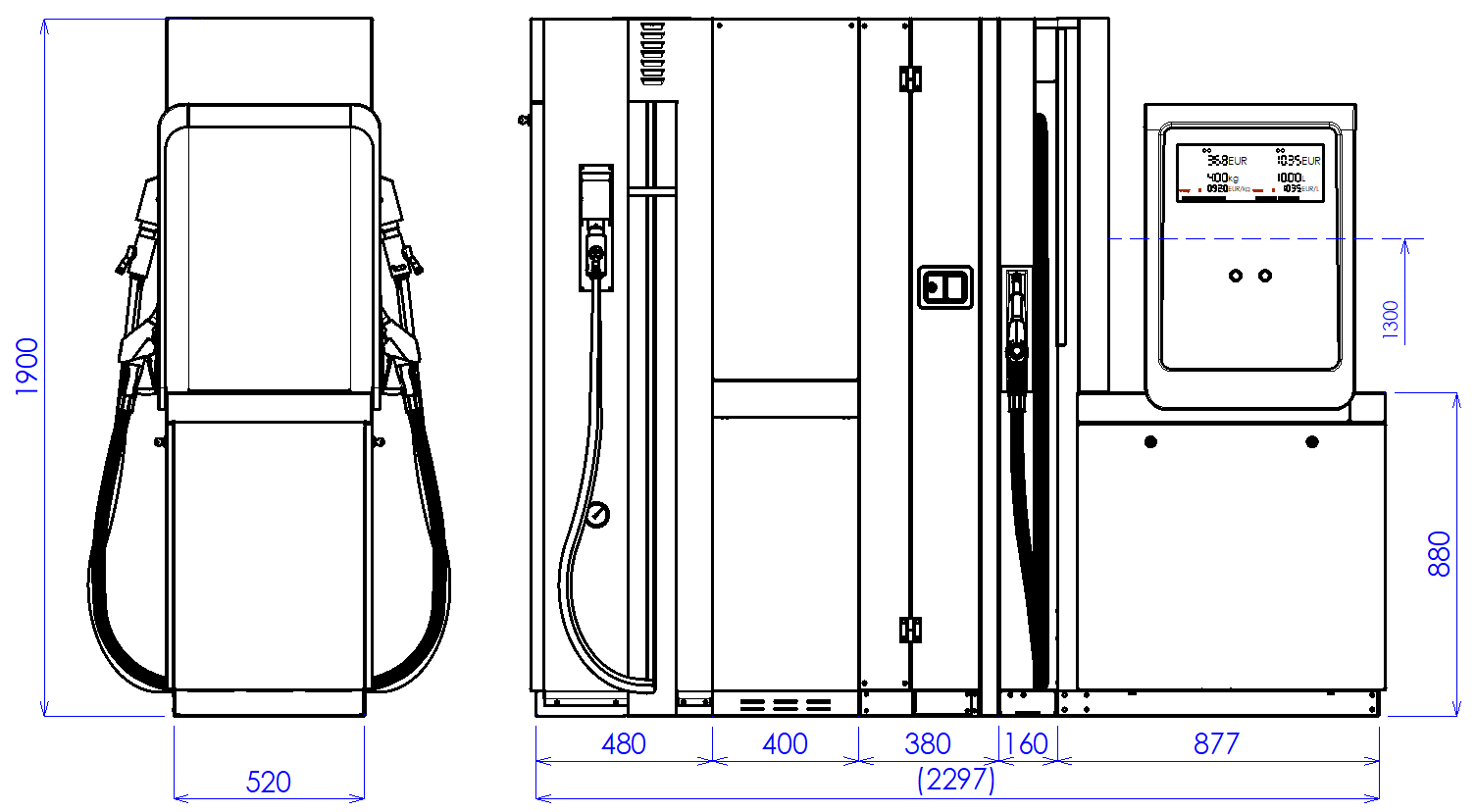

• Overview of dispenser models, dimensions
• Installation and user manuals
• ATEX certificates
• MID and OIML 139 certificates
• Vapour recovery system certificates
• EU Declaration of Conformity

Specifications

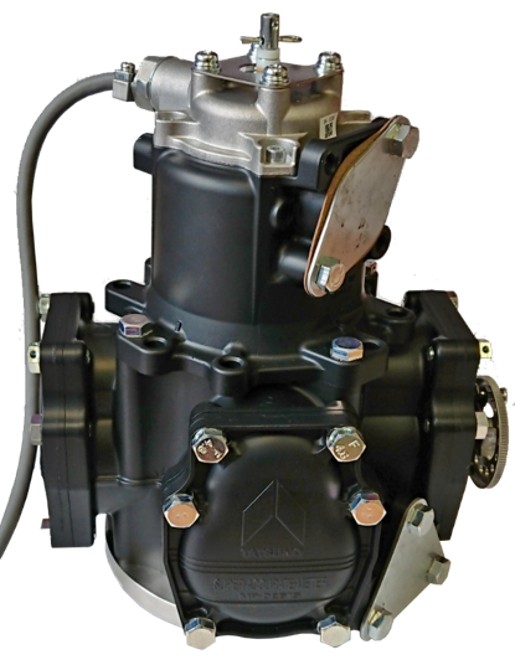

• New type of long life and high accurate hydraulics TATSUNO (Japan)

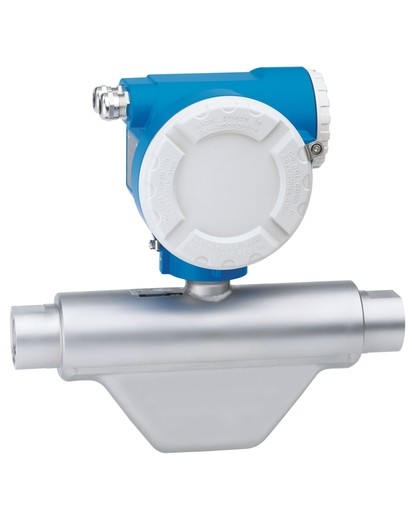

• Reliable electronic counter PDEX5 (for petrol) and TBELTM (for CNG)
• LCD displays (7-6.5-5), or multimedia displays with electronically controlled LED backlight
• Modern compact design
• Accurate pulse generators TATSUNO (Japan) with encrypted AES 128 data transfer
• Electronic totalizers and electromechanical totalizer for every dispensing nozzle
• Infra-red remote controller for dispenser setup
• Vapour recovery system with electronic signalling and monitoring system (optionally)

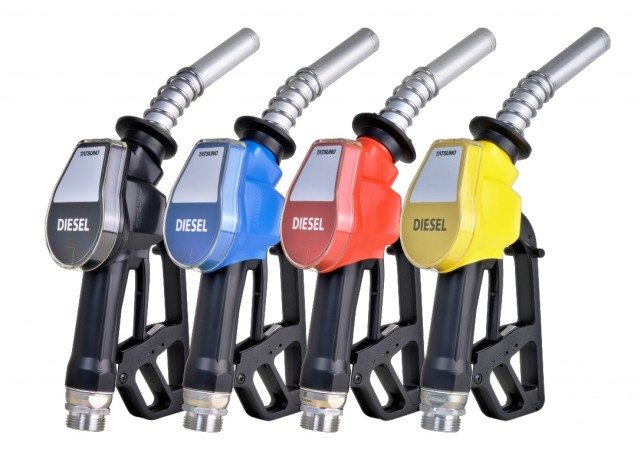

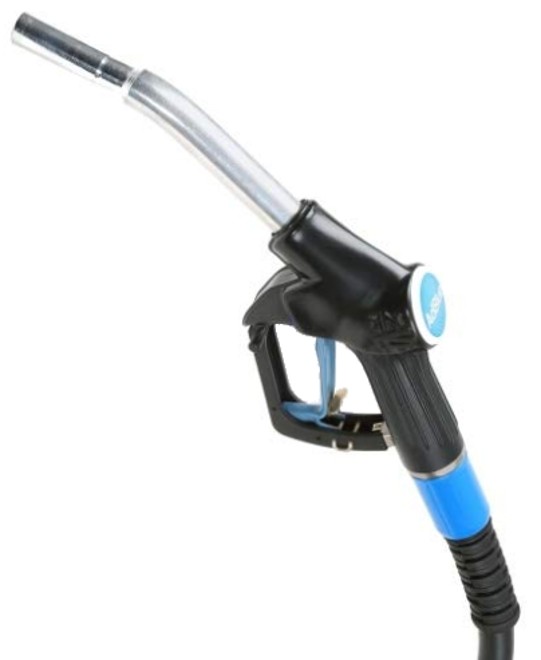

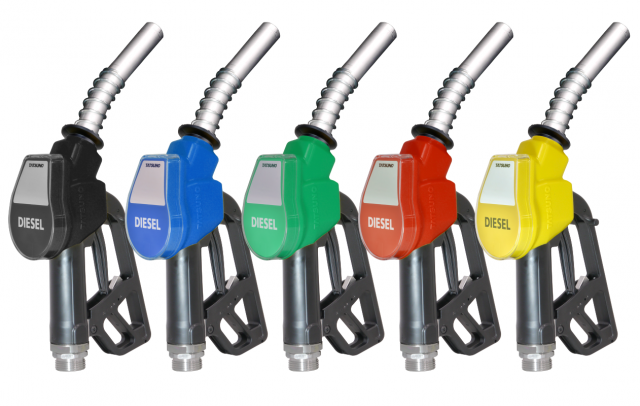

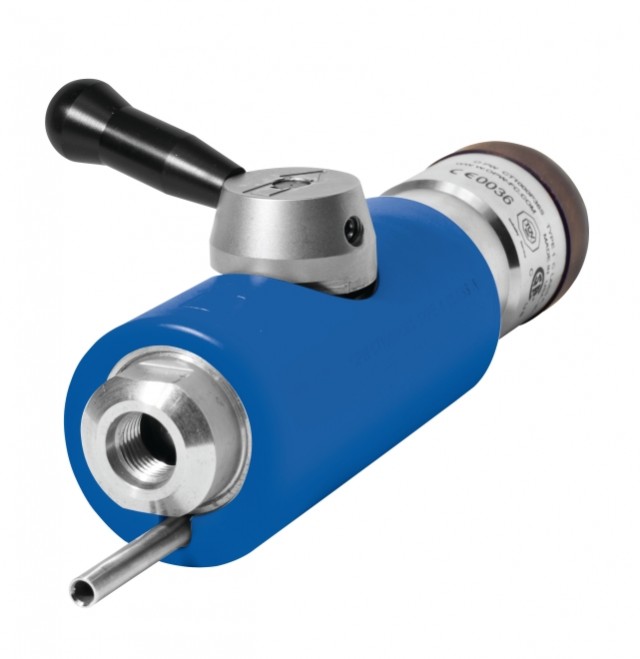

• Dispensing nozzles TATSUNO Ultra (Japan), ZVA-ELAFLEX (Germany) and OPW (USA)
• Reliable hose retraction system with long active nozzle radius
• Free hanging CNG hoses (3m)
• Proportional valves for preselection of dispensed amount/volume
• 4 or 12buttons keypad for amount/volume preselection
• MIN/MAX flow button (optionally) - 130/80 or 80/40 or 40/5 L/min. (motobikes)

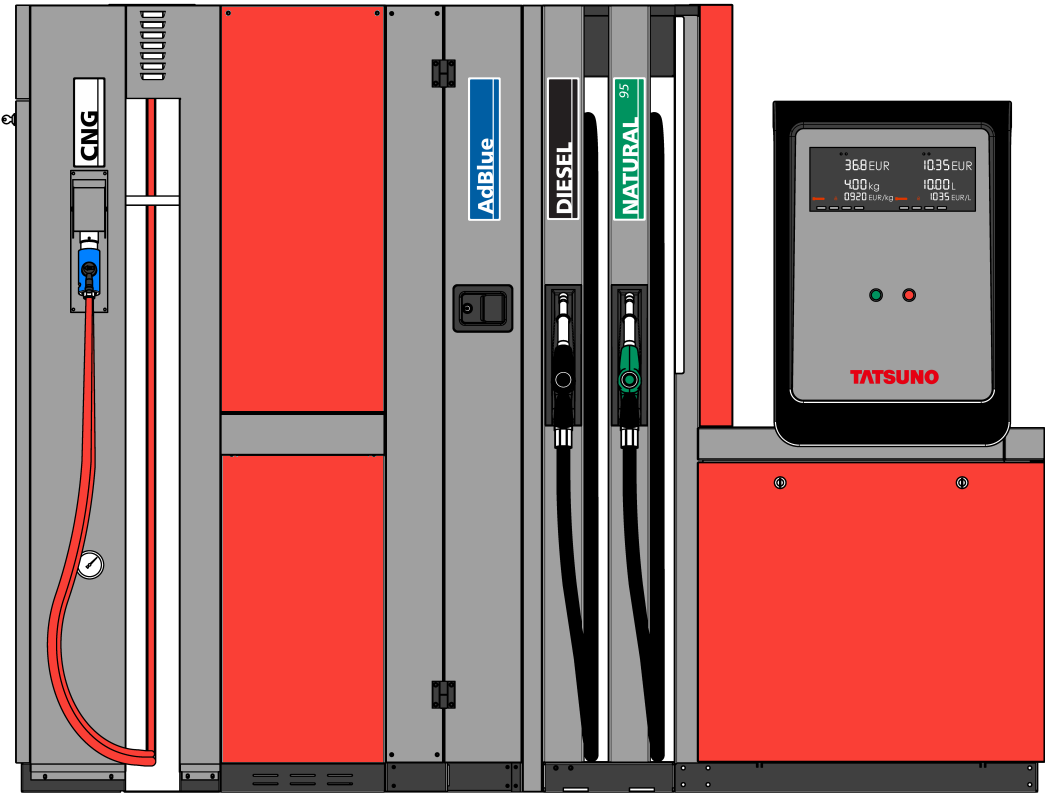

• Color design according to the customer's wishes, standard design - see section Basic models
• Possibility to install multimedia module or payment terminal - on customers request
• Temperature volume correction to volume at 15°C  for petrol products (optionally)
• Temperature compensation of the CNG filling to max. quantity at 20,0 MPa (200 bar) and 15°C  (optional)
• Intelligent switching of the pressure sections (CNG)
• Signal bacons + Collective Error signal (optional)
• Diagnostic line (optionally)

Technical Specifications



Flow rate              - petrol:	standard 40 L/min high 80 L/min ultra high 130 L/min to 150 L/min
- CNG:	standard 30 kg/min increased 70 kg/min
Accuracy of dispensing   - petrol: - CNG:	± 0.25% (at min. delivery 2 L) ± 1.50% (at min. delivery 2 kg)
Maximum pressure               - petrol: - CNG:	0.25 MPa 30.0 MPa
Electric motors:	thrее-phase, 3x400V/50Hz, 0.75kW, 1395 rpm
Counter power supply:	230V +10% -15%, 50Hz max.300VA
Power supply of the switching elements:	+24VDC
Operating temperature:	-20°C ~ +40°C
