OCEAN Tower combi - AdBlue® & WSE

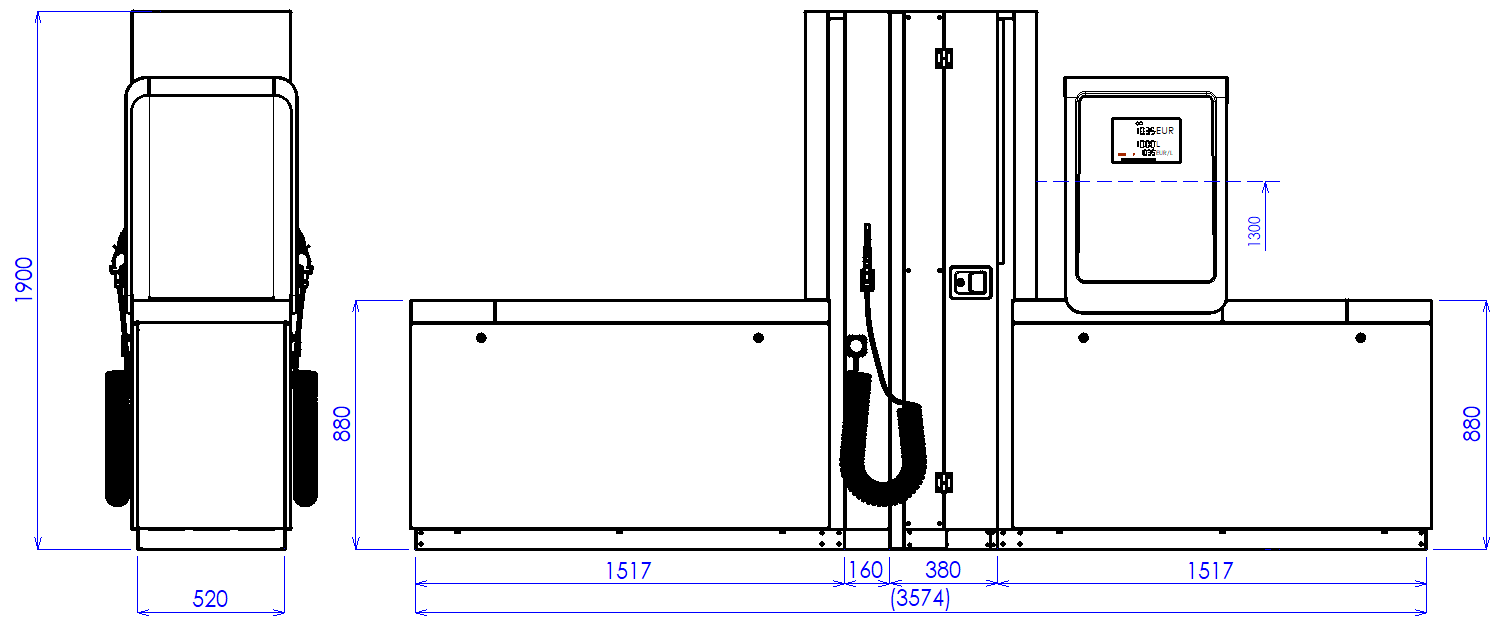

These combined TATSUNO dispensers of the OCEAN Tower series are used for dispensing AdBlue® (32.5% aqueous urea solution acc. ISO 22241) and windshield washer fluid (WSE) at public filling stations. They are modern single-sided or double-sided dispensers with two to six dispensing hoses (max. three dispensing hoses on each side of the dispenser) for delivering any of two products. These dispensers of modern construction are equipped with high-quality Japanese TATSUNO hydraulics and a reliable electronic counter. In areas where the ambient temperature drops below freezing, it is necessary to equip the AdBlue® module  with a thermostat, internal heating of hydraulics, dispensing hoses and nozzles, because at a temperature of about -9°C AdBlue® freezes and it is decomposed. Both the AdBlue® and WSE dispensing module can be supplemented with a suction pump and a storage tank with a capacity of 250L.All combined dispensers in the OCEAN Tower type series are operated both in the manual mode (i.e. off-line), and in the automatic mode, where the fuel dispenser is linked with the kiosk control system and the data concerning volume, amount and price are transmitted to POS.

Dispenser's documents:

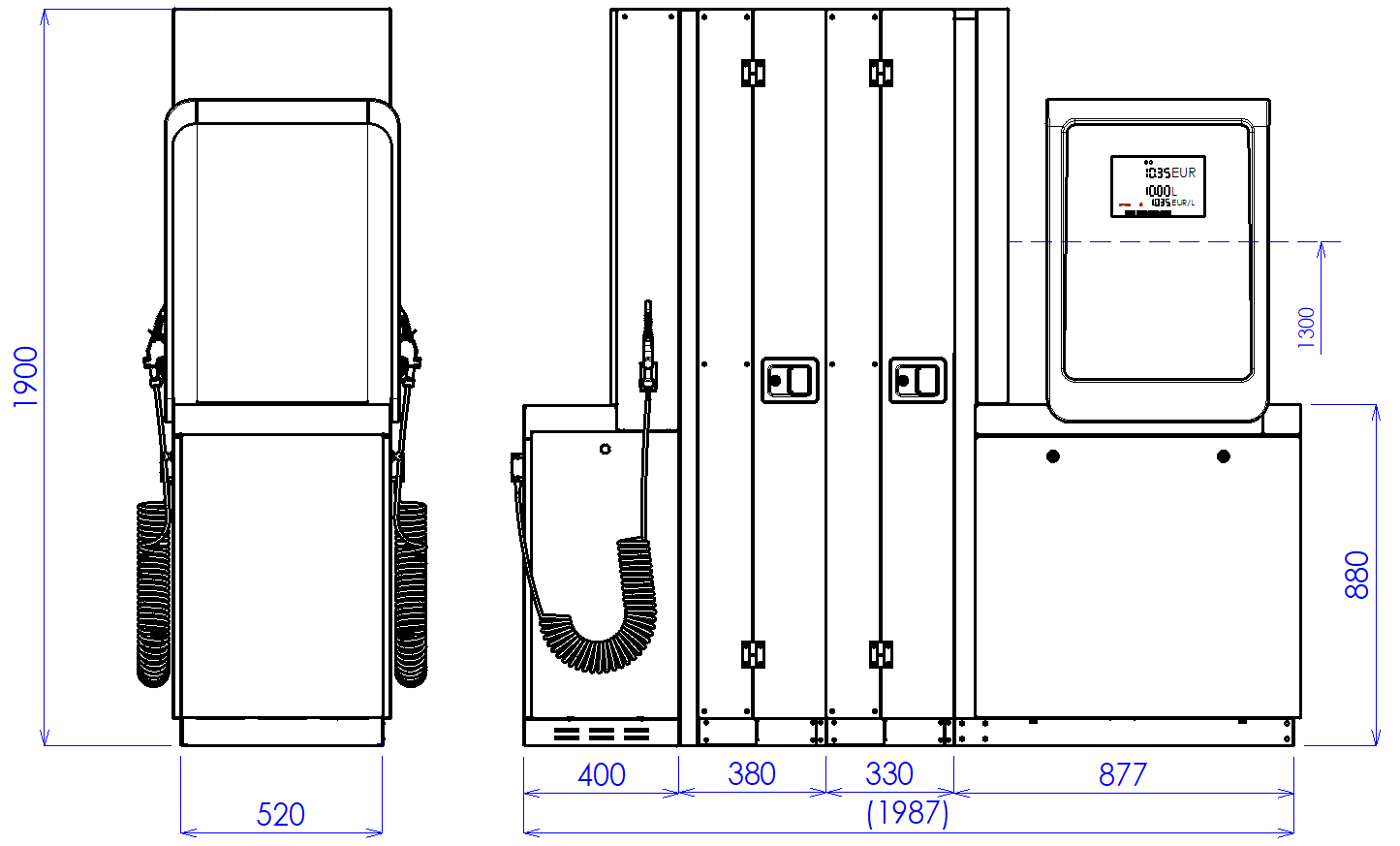

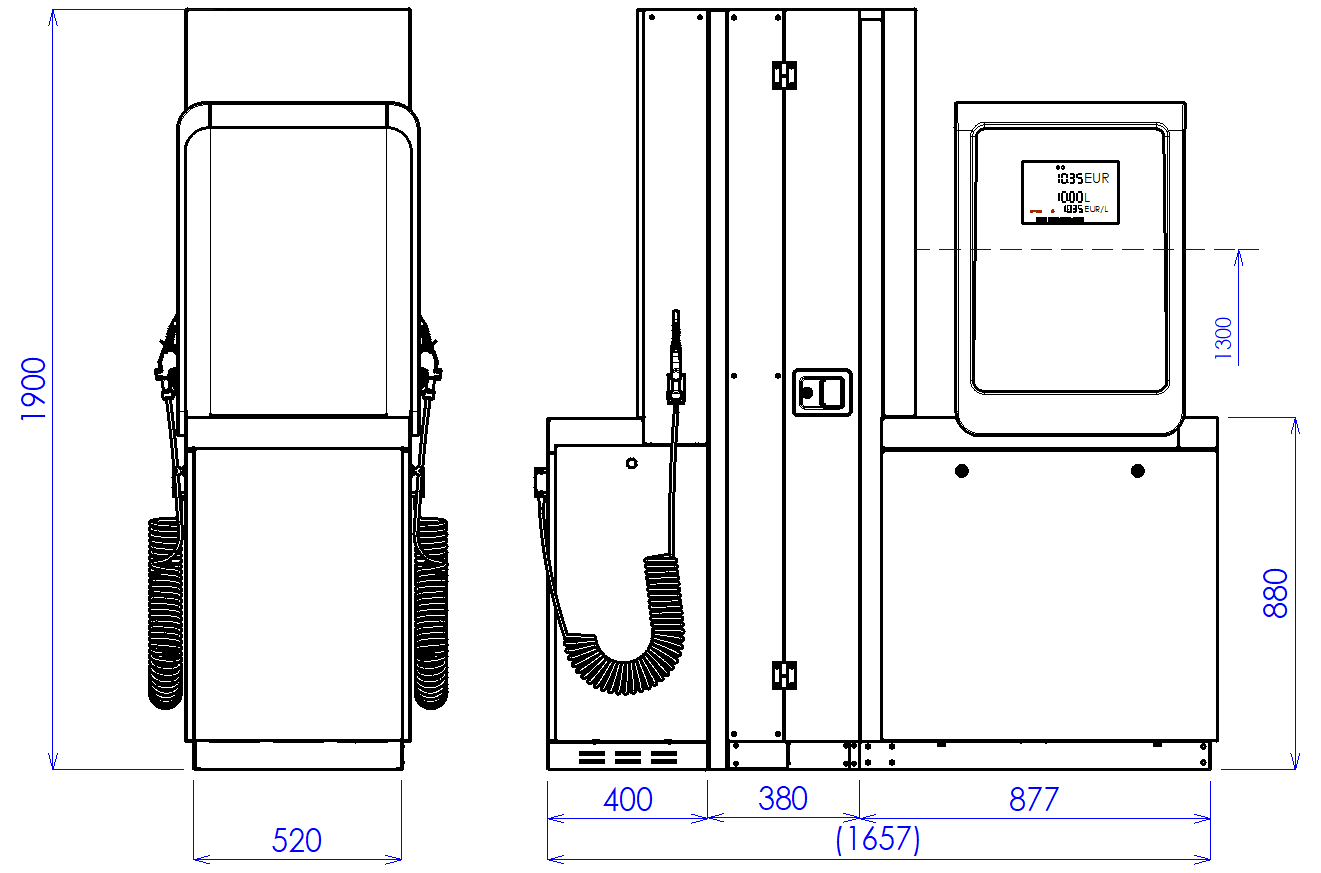

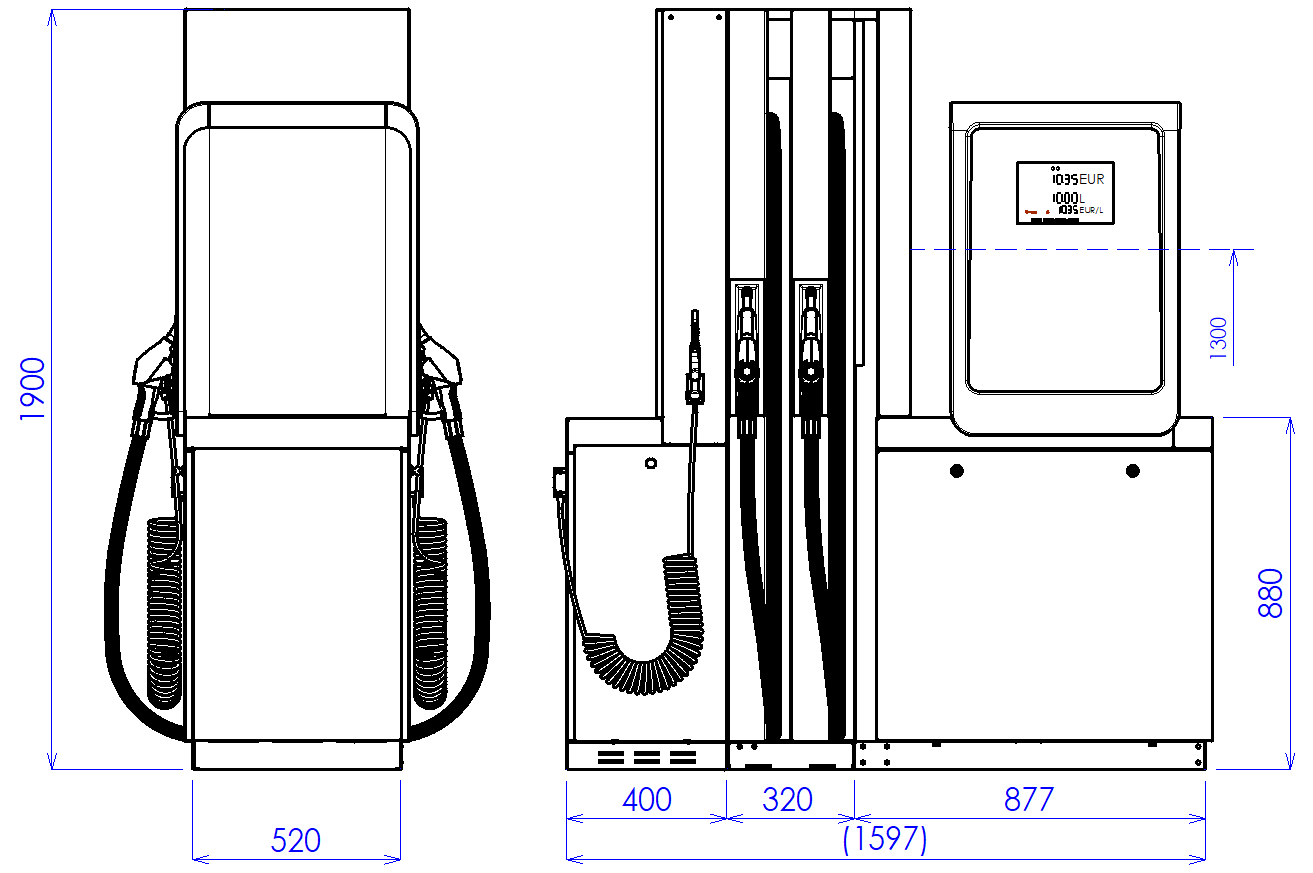

• Overview of dispenser models, dimensions
• Installation and user manuals
• ATEX certificates
• MID certificates
• EU Declaration of Conformity

Specifications

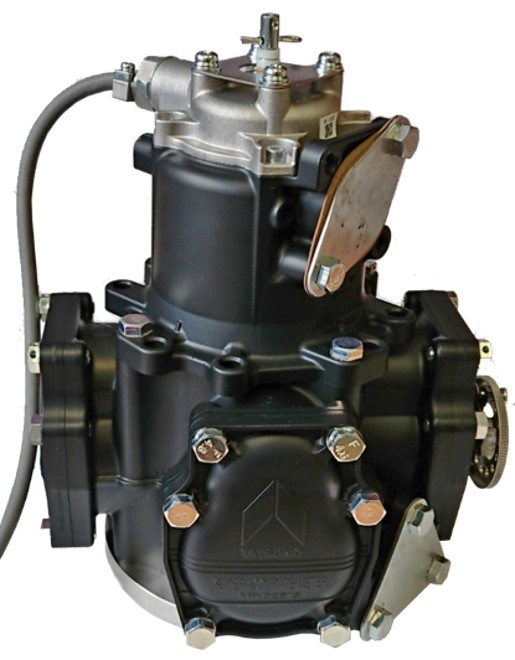

• New type of long life and high accurate hydraulics TATSUNO (Japan)
• Reliable electronic counter PDEX5

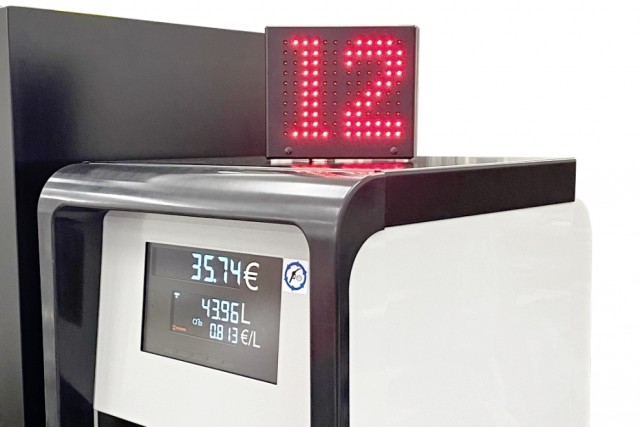

• LCD displays (7-6.5-5), or multimedia displays with electronically controlled LED backlight
• Modern compact design
• Accurate pulse generators TATSUNO (Japan) with encrypted AES 128 data transfer
• Electronic totalizers and electromechanical totalizer for every dispensing nozzle
• Infra-red remote controller for dispenser setup

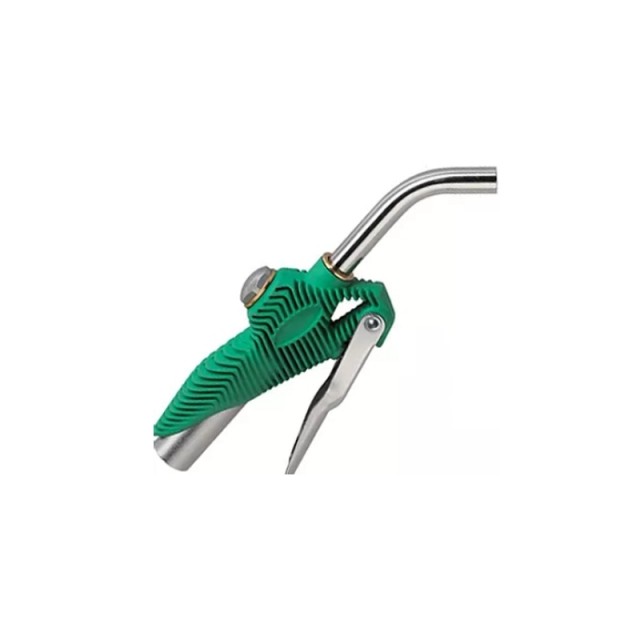

• Dispensing nozzles ZVA-ELAFLEX (Germany)
• Reliable hose retraction system with long active nozzle radius
• WSE spiral free hanging hoses with active nozzle radius 6m
• Proportional valves for preselection of dispensed amount/volume

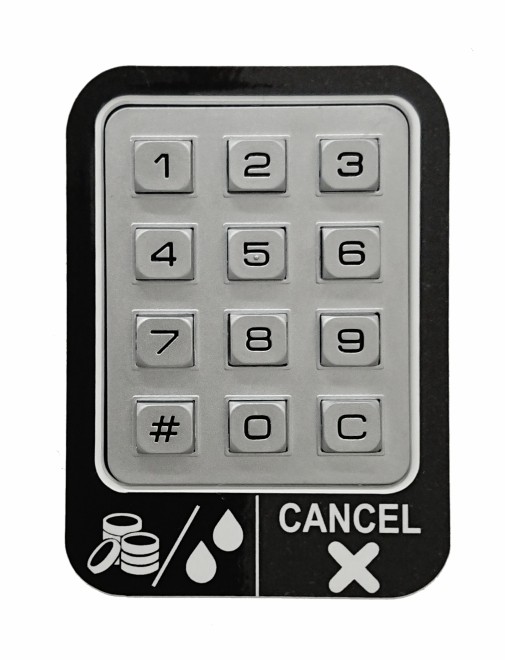

• 4 or 12buttons keypad for amount/volume preselection

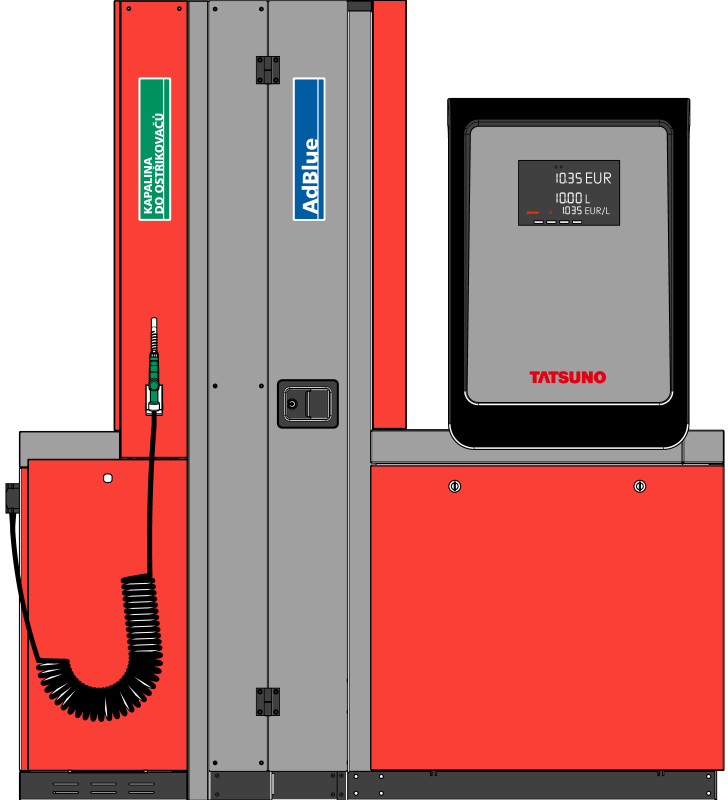

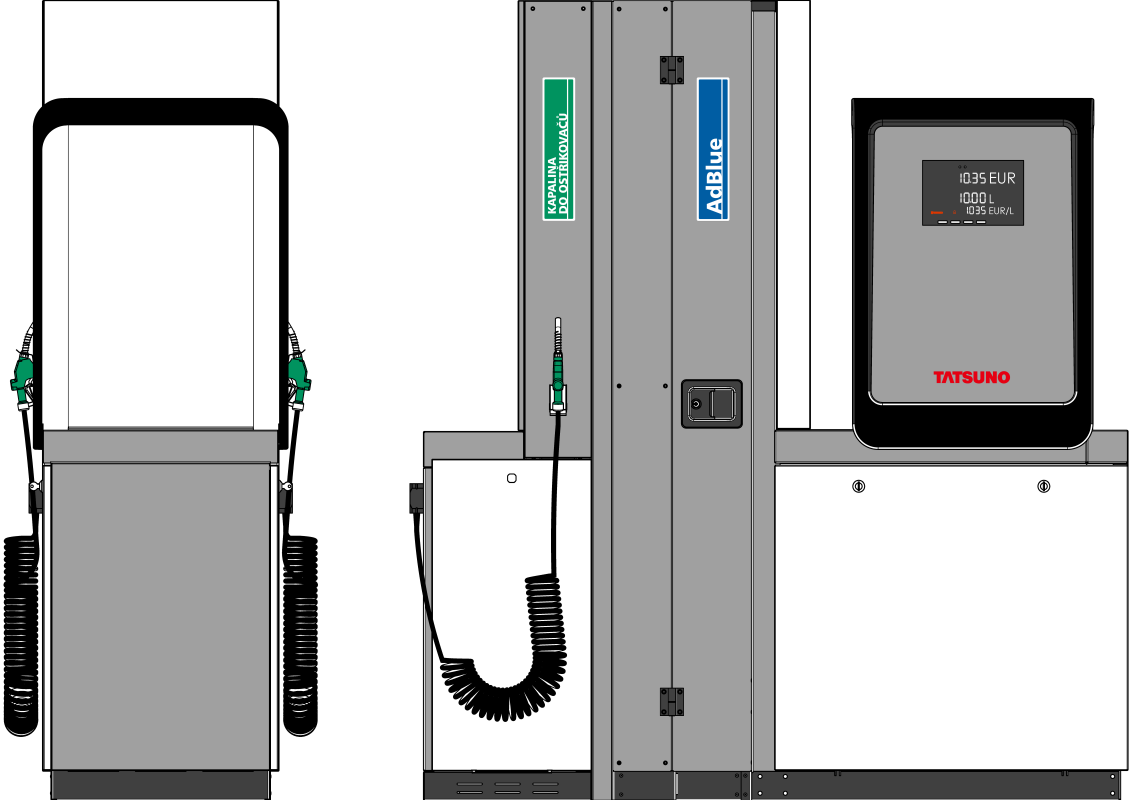

• Color design according to the customer's wishes, standard design - see section Basic models

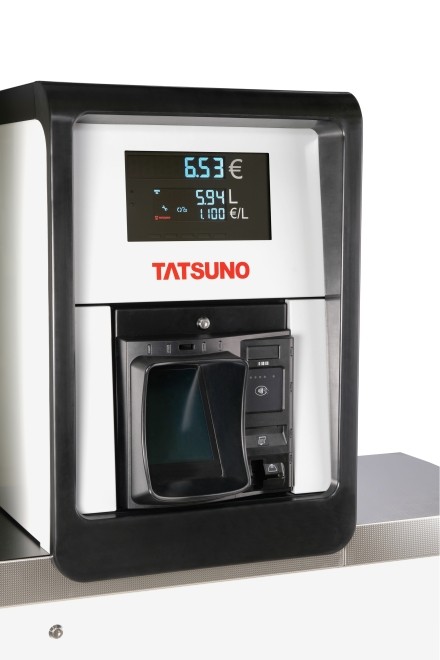

• Possibility to install multimedia module or payment terminal - on customers request
• Diagnostic line (optionally)

Technical Specifications



Flow rate - AdBlue®: - WSE	40 L/min - trucks and buses  10 L/min - personal cars 10 L/min
Accuracy of dispensing:	± 0.15% (at min. delivery 2 litres)
Maximum pressure	0.35 MPa
Counter power supply:	230V +10% -15%, 50Hz max.300VA
Power supply of the switching elements:	+24VDC
Operating temperature:	0°C ÷ +50°C -20°C ÷ +50°C (with AdBlue® heating)
